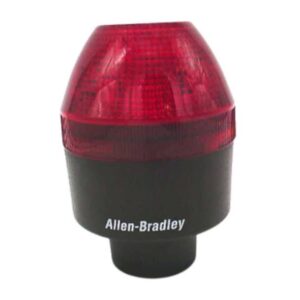

855BS-S24BR4, Allen Bradley, Baliza estroboscópica redonda de 90 mm, montaje en superficie, 24 V CA CC, tensión total, roja
Description
Technical Specifications
Electrical
| Type of current | AC/DC |
|---|---|
| Strobe energy | 7 J |
| Voltage | 24V AC/DC |
| Nominal current | 0.48 A @ 24V AC/DC |
| Function | Strobe beacon (not available in 12V AC/DC) |
| Strobe Frequency | 1 Hz |
| Xenon strobe tube | Helical |
| Strobe tube socket | Terminals |
Construction
| Lens color | Red |
|---|---|
| Replacement lenses | Fresnel |
| Replacement lamps | Xenon Strobe tube |
| Mounting for vertical surfaces | With bracket, for indoor and outdoor |
| Housing pole mount base | Polycarbonate |
| Mounting for horizontal surfaces | Outdoor: with additional metal plate between surface and base part |
| Degree of protection (NEMA) | 13 |
| Degree of protection (IP) | IP65 |
| Housing base material | Polycarbonate |
| Housing lenses | Polycarbonate |
| Housing bracket | Powder-coated steel |
Bulletin Numbers 854J, 854K, 855B, 855BS/BM/BL, 855D, 855E, 855F, 855H/HM, 855L, 855P, 855R, 855T, 855W, 855X/XM, 856T
