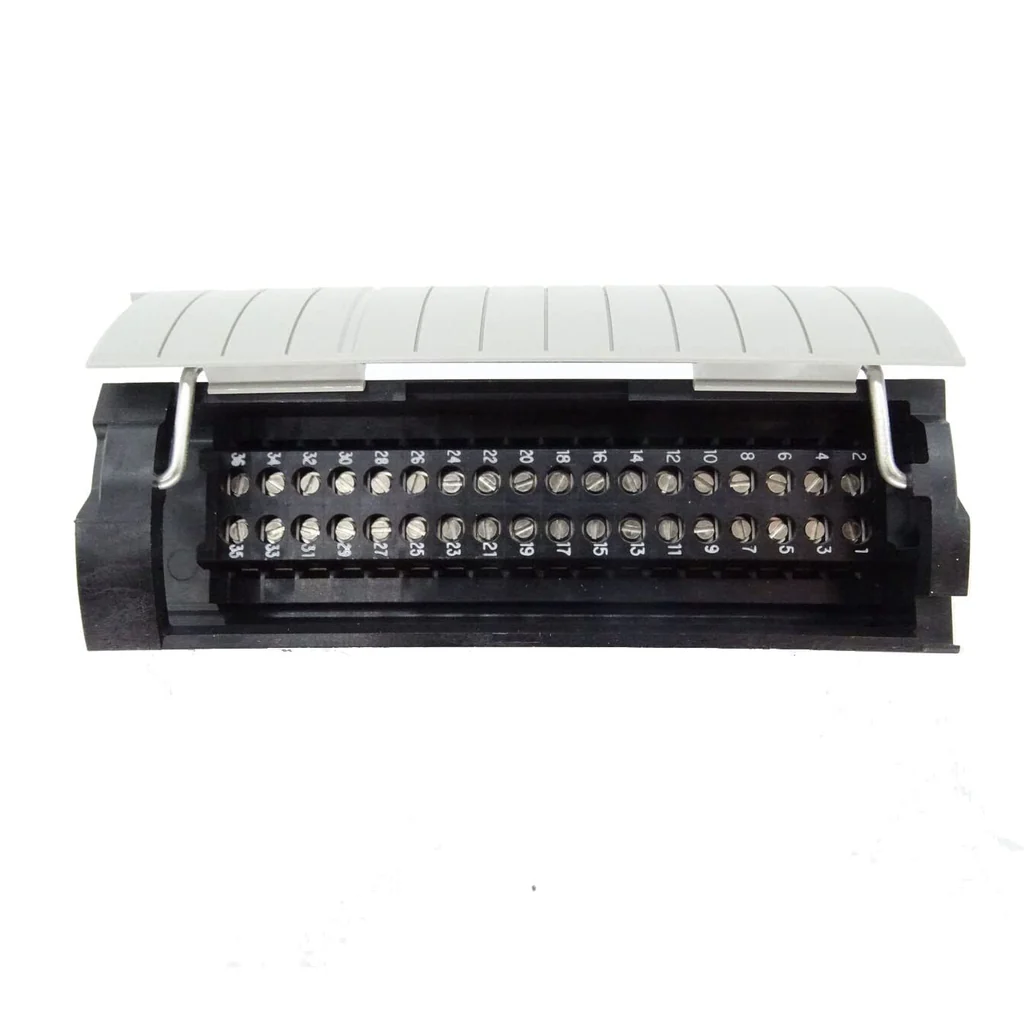

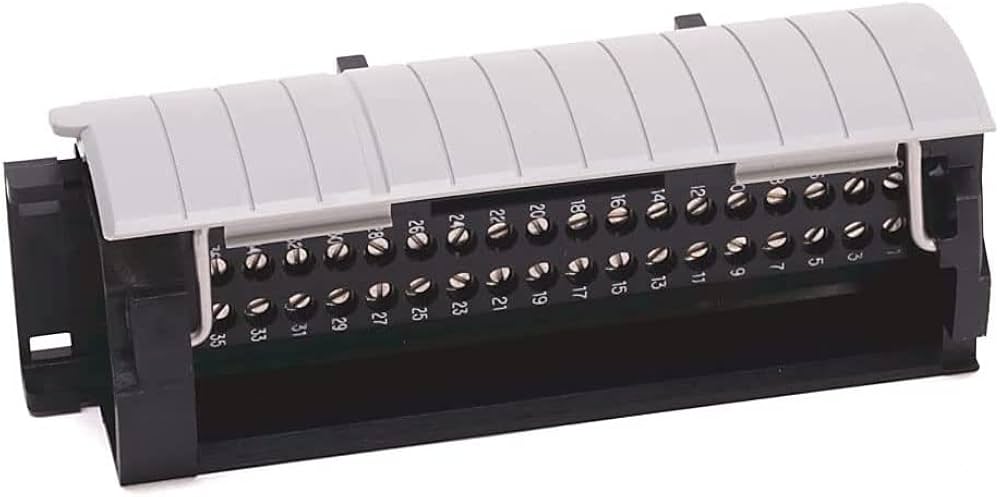

1756-TBCH, Allen Bradley, ControlLogix 36 Pin Screw Terminal Block
El Allen-Bradley 1756-TBCH es un bloque de terminales extraíble (RTB) de 36 pines diseñado para conectar el cableado de campo con los módulos de E/S del sistema industrial ControlLogix
- Tipo de terminal: Abrazadera de tornillo (screw clamp)
- Calibre de cable (Conductor): 22 a 14 AWG
- Carcasa: Estándar
- Par de apriete (Torque): 0.5 N-m
- Compatibilidad: Módulos ControlLogix
Technical specifications for 1756-TBCH
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Removable Terminal Block (RTB) |
| Product Line | ControlLogix |
| Part Number | 1756-TBCH |
| UPC | 612598171835 |
| Weight | 0.31 lbs (0.14 kg) |
| Compatible I/O Modules | Bulletin 1756 I/O Modules |
| Low-Profile Housing | Included |
| Spare Part/Accessory | Yes |
| Mounting Option | Mounts on front of I/O module |
| Clamp Type | Cage-Clamp |
| Screw Torque | 0.5 Nm |
| Single Wire Connections | Supported |
| Double Wire Connections | Supported |
| Screwdriver Width | 3.2 mm |
| Operating Temperature | 0 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
SPEC_47783615_SpecificationSheet
Summary Changes Available: 1756 I/O Modules ControlLogix I/O
1756-IA8D, 1756-IA16, 1756-IA16K, 1756-IA16I, 1756-IA16IK, 1756-IA32, 1756-IA32K, 1756-IM16I, 1756-IM16IK, 1756-IN16, 1756-OA8, 1756-OA8D, 1756-OA8E, 1756-OA16, 1756-OA16K, 1756-OA16I, 1756-OA16IK, 1756-ON8
1756-IB16, 1756-IB16K, 1756-IB16D, 1756-IB16DK, 1756-IB16I, 1756-IB16IK, 1756-IB16IF, 1756-IB16IFK, 1756-IB16ISOE, 1756-IB16ISOEK, 1756-IB32, 1756-IB32K, 1756-IC16, 1756-IG16, 1756-IH16I, 1756-IH16ISOE, 1756-IV16, 1756-IV16K, 1756-IV32, 1756-IV32K,
1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16DK, 1756-OB16E, 1756-OB16EK, 1756-OB16I, 1756-OB16IEF, 1756-OB16IEFK, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32, 1756-OB32K, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-OV16E, 1756-OV32E
1756-IB16S, 1756-OBV8S 1756-OW16I, 1756-OX8I
1756-IF6CIS, 1756-IF6I, 1756-IF8, 1756-IF8K, 1756-IF8I, 1756-IF8IK, 1756-IF16, 1756-IF16K, 1756-IF4FXOF2F, 1756-IF4FXOF2FK, 1756-IR6I, 1756-IRT8I, 1756-IRT8IK, 1756-IR12, 1756-IR12K, 1756-IT6I, 1756-IT6I2, 1756-IT16, 1756-IT16K, 1756-OF4, 1756-OF4K, 1756-OF6CI, 1756-OF6VI, 1756-OF8, 1756-OF8K, 1756-OF8I, 1756-OF8IK
1756-IF8H, 1756-IF8HK, 1756-IF8IH, 1756-IF8IHK, 1756-IF16H, 1756-IF16HK, 1756-IF16IH, 1756-IF16IHK, 1756-OF8H, 1756-OF8HK, 1756-OF8IH, 1756-OF8IHK
1756-CFM, 1756-CMS1B1, 1756-CMS1C1, 1756-HSC, 1756-LSC8XIB8I, 1756-LSC8XIB8IK, 1756-PLS
- ¿Estás buscando reemplazar una pieza existente o añadir un nuevo módulo a tu sistema?
- ¿Necesitas diagramas de cableado o compatibilidad con algún módulo de E/S específico?
- Puede solicitar nitro service tecnico especializado en sistemas Allen Bradley, Somos solución de proveedores en Argentina desde 1999.
