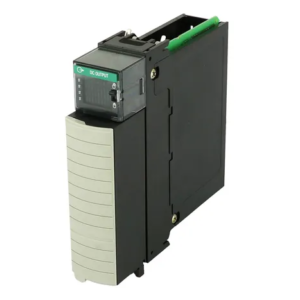

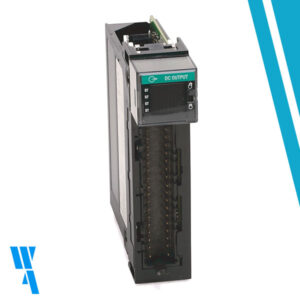

1756-OB32, Allen-Bradley, Output Module,ControlLogix,DC Digital,32 Point,10 31VDC,0.35 A , Sourcing Output
Description
El 1756-OB32 es un módulo de salida discreta ControlLogix que funciona con una categoría de voltaje de 12/24 VCC. Este módulo tiene treinta y dos (32) canales con dos (2) grupos de ocho (8) canales cada uno. Este módulo se instala directamente en un chasis 1756 local o remoto.
Technical Specifications for 1756-OB32
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-OB32 |
| Series | ControlLogix |
| Module Type | DC Output Module |
| Outputs | 32-Point |
| Voltage | 12-24 Volts DC Source |
| Operating Voltage Range | 10-31.2 Volts DC |
| Output Delay Time, OFF to ON | 60 µs nom/1 ms max |
| Output Delay Time, ON to OFF | 200 µs nom/1 ms max |
| Current per point | 0.5 A @ 50 °C (122 °F) linear derating 0.35 A @ 60 °C (140 °F) |
| Current per module | 16 A @ 50 °C (122 °F) linear derating 10 A @ 60 °C (140 °F) |
| Maximum Output Current Rating-Point | 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius |
| Maximum Output Current Rating-Module | 16 Amps at 50 Celsius, 10 Amps at 60 Celsius |
| UPC | 10662468702994 |
| Power Dissipation (Max) | 4.8 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 300 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
Service, Reparaciones Electronicas AB.
Support Links Argentina
Additional information
| Weight | 0,230 kg |
|---|---|
| Dimensions | 15,2 × 3,2 × 15,2 cm |
