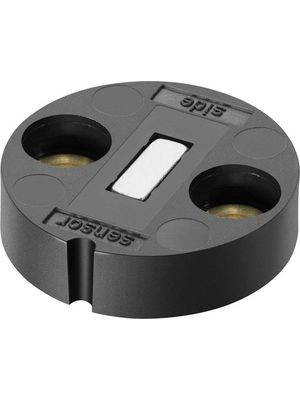

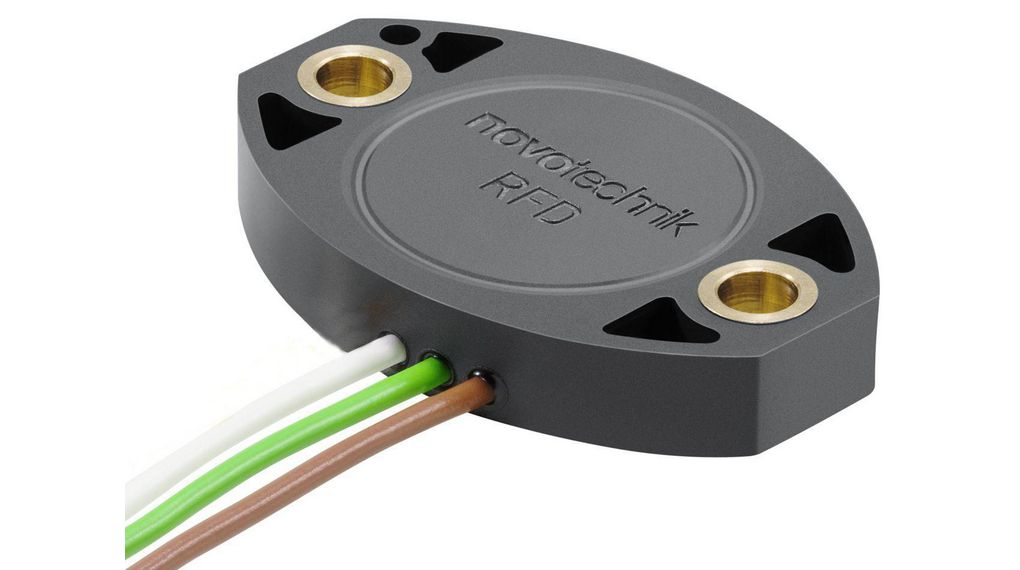

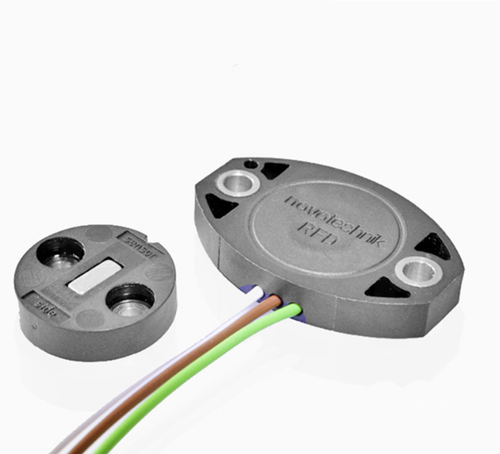

RFD-4021-636-211-401, Novotechnik, Sensor de posición angular de efecto Hall de 360° 0,5%, Montaje en cable Terminal, IP67 / IP68 / IP69

Description

Angular Position Sensor Output Type	Analogue – Voltage
Angle – Electrica	360 °
Angle – Mechanical	360 °
Linearity (±)	0.5 %
Operating Voltage Min.	4.5 V
Operating Voltage Max.	5.5 V
Current Consumption	13 mA
Termination Type	Cable Terminal
Cable Length	500 mm
Mounting Type	Cable Mount
Protection Rating	IP67 IP68 IP69
Operating Temperature Min.	-40 °C
Operating Temperature Max.	125 °C
