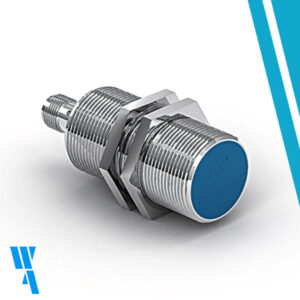

I30N004, Wenglor, Sensor inductivo con distancias de conmutación estándar, Sn:10mm, Flush, 10-30VDC, latón, PVC, M12 Conector.
Description
Resumen de las características
Mínimo espacio de montaje gracias a weproTec de wenglor
Innovadora tecnología de circuitos ASIC
Indicador de errores integrado
Inductive Data
Switching Distance :10 mm
Correction Factors Stainless Steel V2A/CuZn/Al 1,18/0,5/0,46
Mounting: Flush

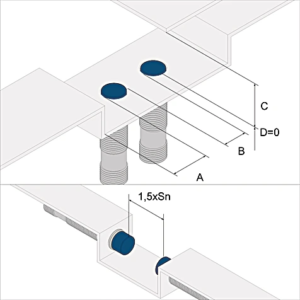

Mounting: A/B/C/D in mm 0/20/30/0
Mounting B1 in mm 0…10
Switching Hysteresis < 10 %
Electrical Data:
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V) < 10 mA
Switching Frequency 580 Hz
Temperature Drift < 10 %
Temperature Range -40 … 80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 150 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

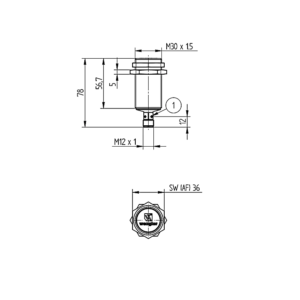

Mechanical Data
Housing Material Brass, nickel-plated
Sensing face Plastic, PBT
Degree of Protection IP67
Connection M12 × 1; 4-pin
Weight 108 g
Safety-relevant Data
MTTFd (EN ISO 13849-1) 3,706.54 a
General Data
Packaging unit 1 Piece
Function
Error Indicator yes
Output
PNP NC, PNP NO yes
Adjustable parameters
Circuit NC
NC+NO
NO
Mas Información?
Additional information
| Weight | 0,108 kg |
|---|
