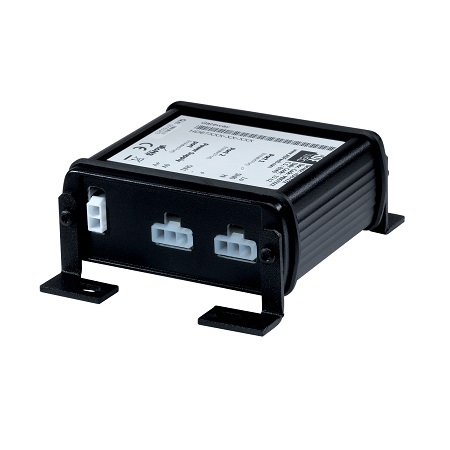

HD674-A004-4 E4V, ADFWeb, Convertidor maestro Ethernet/IP/Modbus (conectores Mini-Fit, barnizado), de -40° a +105°.
Description
Specificactions:
- Ports: 1x RS485; 1x Ethernet
- Data Rates RS485: Up to 115200 bps
- Data Rates Ethernet: 10/100 Base-T Autosensing
- RS485 connector: 3way Mini-Fit®
- Ethernet connector: RJ45
- Power supply connector: 2way Mini-Fit®
- Power supply: 10…40VDC; 8…26VAC
- Operating temperature: -40°C to +105°C (-40°F/+221°F)
- Dimensions: 76 mm x 86 mm x 40 mm (DxWxH)
- Dimensions with fixing lugs A: 105 mm x 86 mm x 40 mm (DxWxH)
- Dimensions with fixing lugs B: 83 mm x 112.5 mm x 40 mm (DxWxH)
- Dimensions with fixing lugs C: 105 mm x 112.5 mm x 40 mm (DxWxH)
- Weight: 200g approx
- Mechanical fixing: DIN Rail mount
- Software: SW674-A001
- ORDER CODE: HD674-A001-E4V
- Solicte cotizacion
Additional information
| Weight | 0,200 kg |
|---|
