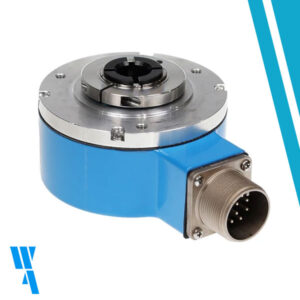

DGS35-1H408192, SICK, Codificador, Encoder, incremental, DGS35; 300 kHz, 600 kHz; Interfaz eléctrica: 5 V, TTL, Conector macho, MS, 10 pines, radial.
Description
Product features
| Type: | Rotary |
| Shaft / Flange design: | Through hollow shaft |
| Shaft diameter: | 1″ |
| Remark:: | T1 Tether |
| Interface: | 5 V, TTL |
| Connection type:: | Connector, MS, 10-pin, radial |
| Number of lines: | 8,192 |
| Number of lines/steps: | 8,192 |
| Technical data | |
| Moment of inertia of the rotor: | 490 gcm² |
| Measuring step: | 90°/number of lines |
| Measuring step deviation: | 45/Z ° |
| Ambient operation temperature, min … max: | -20 °C … +70 °C |
| Max. angular acceleration: | 1 x 105 rad/s² |
| Operating torque: | 7 Ncm |
| Start up torque: | 9 Ncm |
| Resistance to shocks: | 50/11 g/ms |
| Resistance to vibration: | 5/2000 Hz @ 20 g |
| Supply voltage min … max:: | DC 4.75 … 5.25 V |
| Permissible relative humidity: | 95% |
| Voltage output: | DC |
| Working temperature range read head: | -20 °C … +70 °C |
| Storage temperature range read head: | -30 °C 85 °C |
| Voltage area min … max:: | DC |
Somos proveedores de SICK, Argentina, podemos suministrar sus encoders y brindar asistencia tecnica.
Mas información?
Additional information
| Weight | 0,350 kg |
|---|
