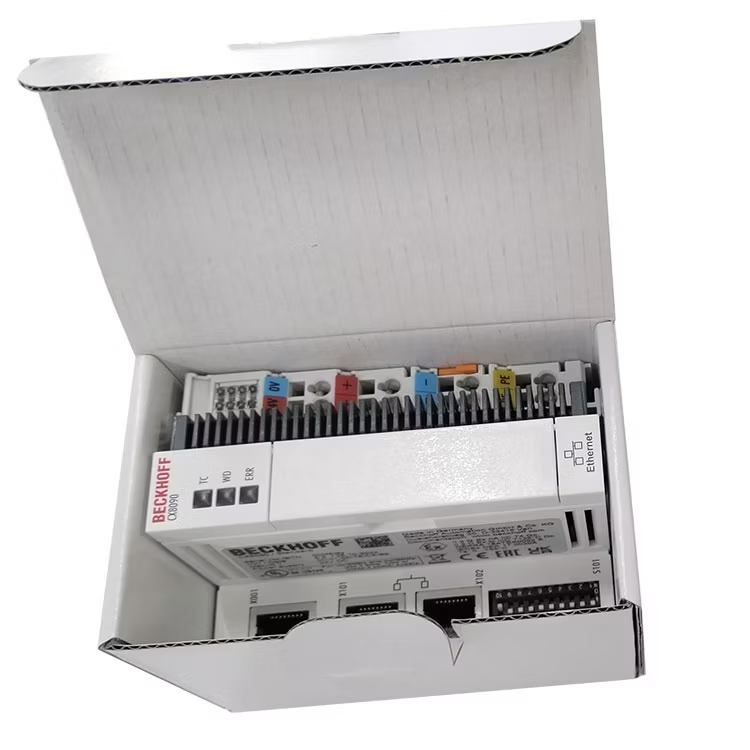

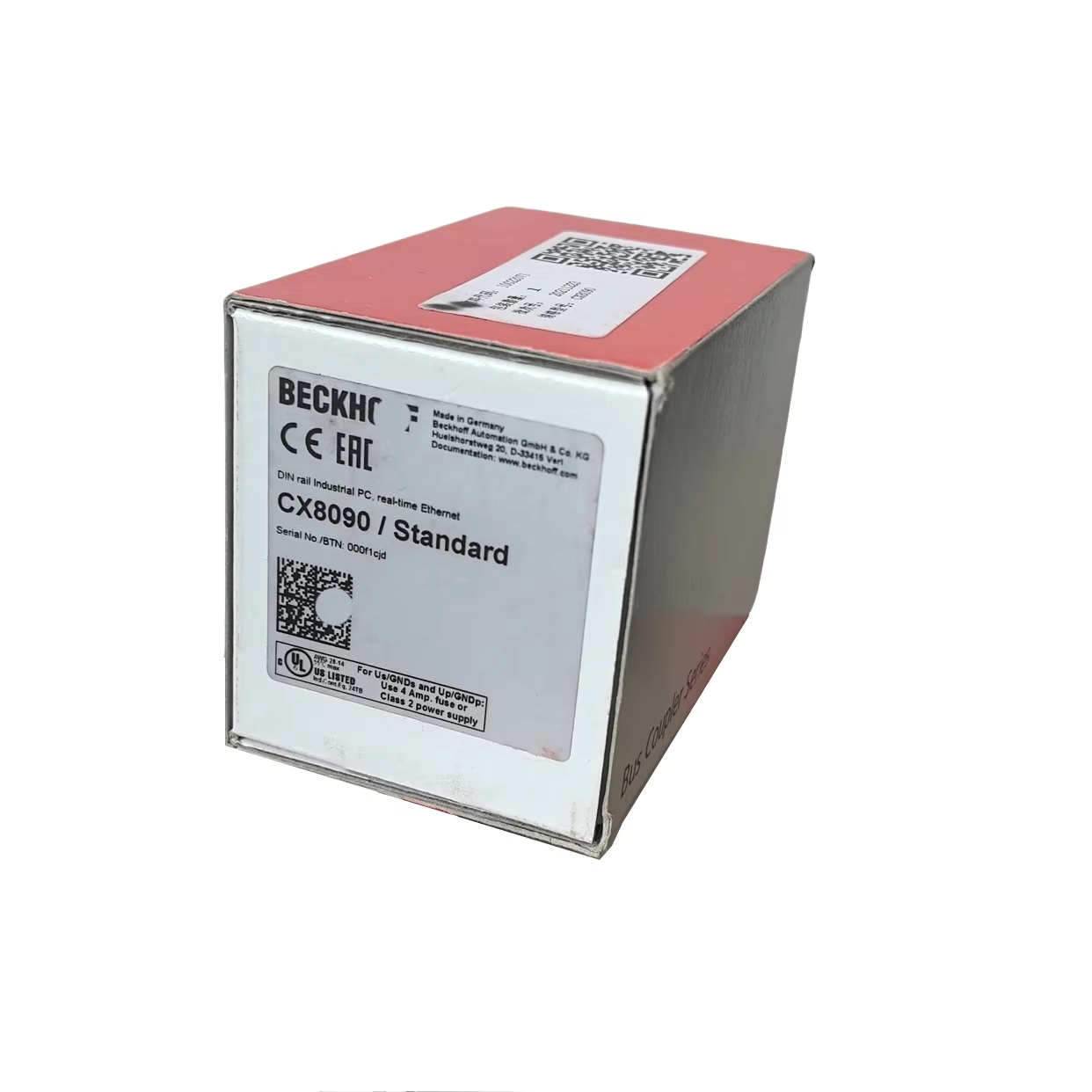

CX8090, Beckhoff Automation, PC integrado con Arm9™ y conmutador Ethernet de 2 puertos
Description
CX8090 | PC integrado con Arm9™ y conmutador Ethernet de 2 puertos
El CX8090 es un sistema de control con un puerto Ethernet conmutado. Admite protocolos como Ethernet en tiempo real, ADS UDP/TCP, Modbus TCP cliente/servidor o comunicación abierta TCP/IP-UDP/IP. Se pueden conectar terminales K-bus o E-bus según sea necesario; el CX8090 reconoce automáticamente el tipo de sistema de E/S conectado durante la fase de arranque. El sistema de control se programa con TwinCAT a través de la interfaz de bus de campo o la interfaz Ethernet adicional.
| Technical data | CX8090 |
|---|---|
| Processor | Arm9™, 400 MHz |
| Number of cores | 1 |
| Flash memory | slot for microSD card, 512 MB included (optionally expandable) |
| Main memory | 64 MB DDR2 RAM (not expandable) |
| 1-second UPS | integrated (1 MB on microSD card) |
| Programming languages | IEC 61131-3 |
| Web visualization | yes |
| Online change | yes |
| Up/down load code | yes/yes |
| Interfaces | 1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface |
| Cooling | passive |
| Bus interface | 2 x RJ45 (switched) |
| Diagnostics LED | 1 x TC status, 1 x WD, 1 x error |
| Clock | internal battery-backed clock for time and date (battery behind the front flap, exchangeable) |
| Operating system | Windows Embedded CE 6 |
| Control software | TwinCAT 2 PLC |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15%/+20%) |
| UPS OCT-capable | no |
| Current supply E-bus/K-bus | 2 A |
| Web-based management | yes |
| Max. power consumption | 3 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Dimensions (W x H x D) | 64 mm x 100 mm x 73 mm |
| Weight | approx. 180 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3 G Ex nA IIC T4 Gc II 3 D Ex tc IIIC T135 °C Dc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
