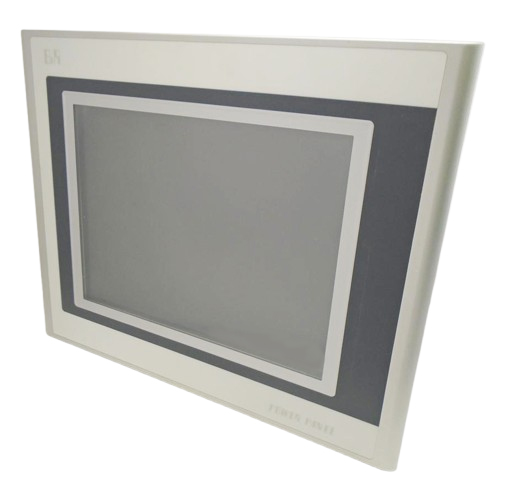

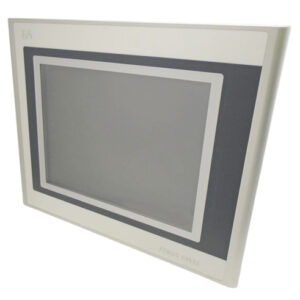

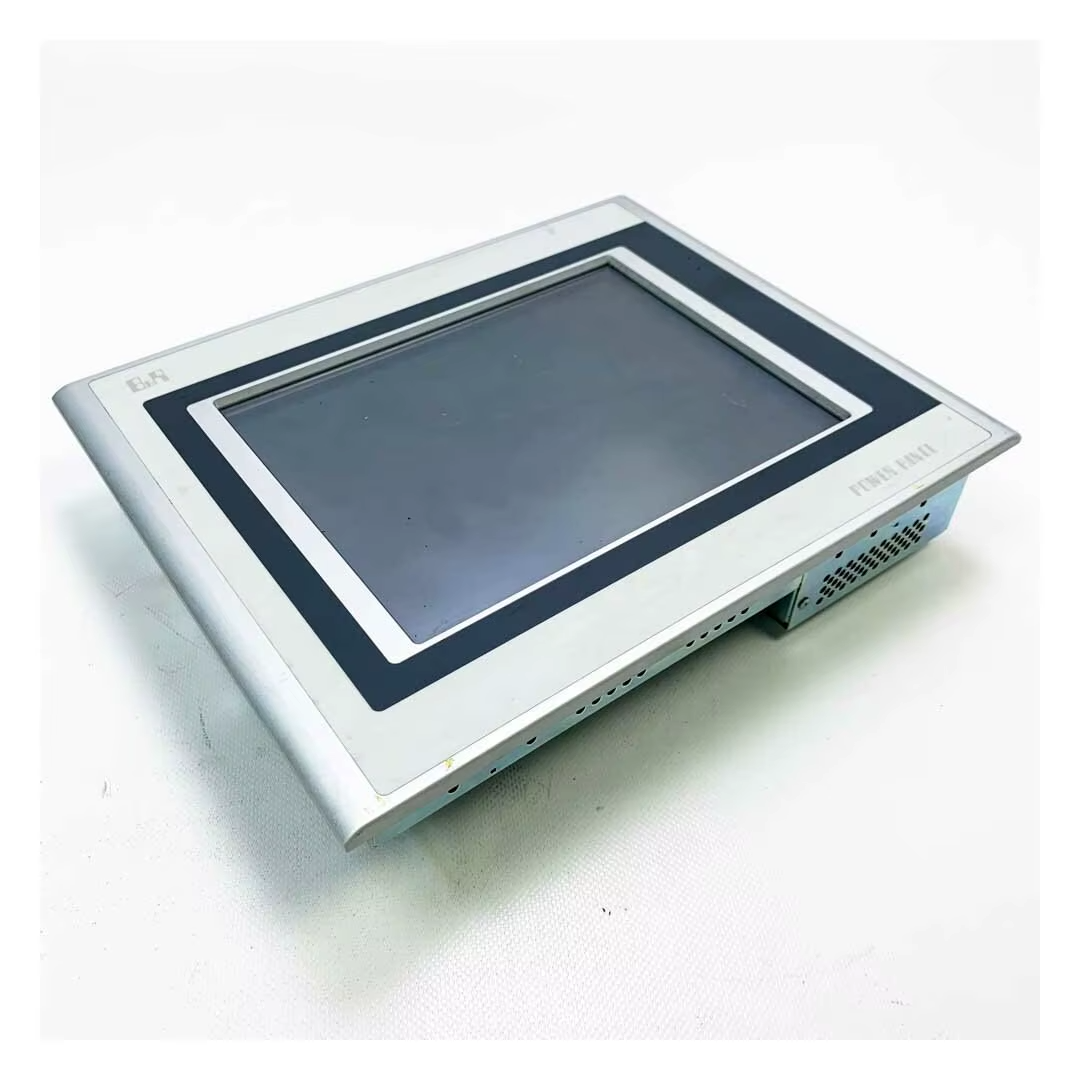

5PP320.1043-39, B&R, Panel de alimentación PP320 BIOS, pantalla TFT a color VGA de 10,4″
Description
NÚMERO DE MATERIAL:
5PP320.1043-39
DESCRIPCIÓN:
Panel de alimentación PP320 BIOS, pantalla TFT a color VGA de 10,4″ con pantalla táctil (resistiva), 256 MB de SDRAM, ranura CompactFlash (tipo I), ETH 10/100, RS232, 2 puertos USB, protección IP65 (frontal), 24 VCC (pedir por separado el bloque de terminales de tornillo 0TB103.9 o el bloque de terminales de jaula 0TB103.91).
General information
| LEDs | Power/User, CF |
| B&R ID code | 0x23D0 |
| Battery | |
| Type | Renata 950 mAh |
| Service life | 4 years |
| Removable | Yes, accessible from the outside |
| Backup capacitor | |
| Buffer time | 10 min |
| Variant | Lithium ion |
| Power button | Yes |
| Reset button | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
Controller
| Bootloader | BIOS |
| Processor | |
| Type | Geode LX800 |
| Clock frequency | 500 MHz |
| L1 cache | 128 kB (64 kB I-cache / 64 kB D-cache) |
| L2 cache | 128 kB |
| Expanded command set | MMX technology, 3D Now |
| Floating point unit (FPU) | Yes |
| Flash | 2 MB (for firmware) |
| Cooling | Passive via heat sink |
| Mode/Node switches | 2, 16 positions each |
| Watchdog | MTCX |
| Real-time clock | |
| Accuracy | At 25°C: Typ. 30 ppm (2.5 seconds) per day |
| Battery-backed | Yes |
| Power failure logic | |
| Controller | MTCX |
| Buffer time | – |
| Graphics | |
| Controller | Geode LX800 |
| Memory | 8 MB shared memory (reserved by main memory) |
| SRAM | |
| Size | – |
| Battery-backed | – |
Display
| Type | TFT color |
| Diagonal | 10.4″ (264 mm) |
| Colors | 262,144 |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 900:1 |
| Viewing angles | |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Direction U = 80° / Direction D = 80° |
| Backlight | |
| Type | LED |
| Brightness | 450 cd/m² |
| Half-brightness time | 70,000 h |
| Filter glass | |
| Transmittance | – |
| Anti-glare coating | – |
| Touch screen | |
| Type | AMT |
| Technology | Analog, resistive |
| Controller | Elo, serial, 12-bit |
| Transmittance | Up to 80% ±5% |
Interfaces
| COM1 | |
| Type | RS232, modem supported, not galvanically isolated |
| Variant | 9-pin male DSUB connector |
| UART | 16C550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 | |
| Type | Type I |
| USB | |
| Quantity | 2 |
| Type | USB 1.1, USB 2.0 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Current-carrying capacity | Max. 500 mA per connection |
| Ethernet | |
| Quantity | 1 |
| Controller | Intel 82551ER |
| Transfer rate | 10/100 Mbit/s |
| Max. baud rate | 100 Mbit/s |
Keys
| Function keys | No |
| Soft keys | No |
| System keys | No |
| Service life | – |
| LED luminous intensity | – |
Slots
| aPCI slots | No |
Electrical properties
| Nominal voltage | 18 to 30 VDC |
| Nominal current | 0.63 A |
| Bleeder resistance | 0 Ω |
| Inrush current | Max. 2.8 A |
| Power consumption | Typ. 15 W |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card) Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water |
Ambient conditions
| Temperature | |
| Operation | 0 to 50°C |
| Storage | -20 to 70°C |
| Transport | -20 to 70°C |
| Vibration | |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock | |
| Operation | 15 g, 11 ms |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Elevation | |
| Operation | Max. 3000 m |
Mechanical properties
| Housing | |
| Material | Metal |
| Front | |
| Frame | Aluminum, naturally anodized |
| Design | Gray |
| Panel overlay | |
| Material | Polyester |
| Light background color | Similar to Pantone 427CV |
| Dark border color around display | Similar to Pantone 432CV |
| Gasket | Flat gasket around display front |
| Dimensions | |
| Width | 323 mm |
| Height | 260 mm |
| Depth | 65.5 mm |
| Weight | 3700 g |
Mas información?
Power Panel 300/400 User’s Manual
Additional information
| Weight | 3,700 kg |
|---|---|
| Dimensions | 32,0 × 6,5 × 26,0 cm |
