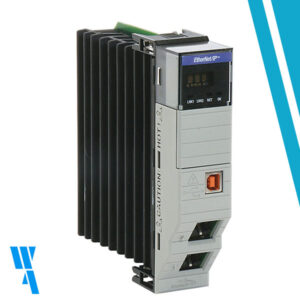

1756-EN2TR, Allen Bradley, CLX ENet/IP 100M DLR
Description
| With optical interface |
No |
| Supporting protocol for TCP/IP |
Yes |
| Supporting protocol for DeviceNet |
No |
| Supporting protocol for other bus systems |
No |
| Redundancy |
Yes |
| IO link master |
No |
| Supporting protocol for DeviceNet Safety |
No |
| Supporting protocol for EtherNet/IP |
Yes |
| Power dissipation |
5.1 W |
| Thermal dissipation |
17.4 BTU/h |
| Enclosure type rating |
None (open-style) |
| Ethernet ports |
2 Ethernet RJ45 Category 5 |
| CIP unconnected messages |
128 + 128 (backplane + Ethernet) |
| Current draw |
1 A @ 5.1V DC, 3 mA @ 24V DC |
| Ethernet cable |
802.3 compliant shielded or unshielded twisted pair |
| Wiring category |
2 – on Ethernet ports, 3 – on USB ports |
| Communication rate |
10/100 Mbps |
| Connections supported, max |
TCP: 128, CIP: 256 (CIP connections can be used for all explicit or all implicit applications. for example, a 1756-ENBT module has a total of 128 CIP connections that can be used for any combination of connections.) |
| Isolation voltage |
30V (continuous), Basic Insulation Type, Ethernet to Backplane, USB to Backplane, and USB to Ethernet(Applies only to these modules/series: 1756-EN2T/D, 1756-EN2TR/C,1756-EN3TR/B), Type tested at 980V AC for 60 s |
| Supporting protocol for LON |
No |
| Supporting protocol for ASI |
No |
| Supporting protocol for PROFIBUS |
No |
| Supporting protocol for CAN |
No |
| Supporting protocol for INTERBUS |
No |
| Supporting protocol for KNX |
No |
| Supporting protocol for Modbus |
No |
| Supporting protocol for Data-Highway |
No |
| Supporting protocol for SUCONET |
No |
| With potential separation |
No |
| Supporting protocol for SERCOS |
No |
| Supporting protocol for INTERBUS-Safety |
No |
| Radio standard Bluetooth |
No |
| Radio standard Wi-Fi 802.11 |
No |
| Supporting protocol for AS-Interface Safety at Work |
No |
| Supporting protocol for Foundation Fieldbus |
No |
| Supporting protocol for PROFINET CBA |
No |
| Supporting protocol for PROFINET IO |
No |
| Supporting protocol for PROFIsafe |
No |
| Supporting protocol for SafetyBUS p |
No |
| Radio standard GPRS |
No |
| Radio standard GSM |
No |
| Radio standard UMTS |
No |
| Slot width |
1 |
| ATEX temp code |
T4 |
| Surrounding air temperature, max |
60 °C |
| Storage temperature |
-40 °C <Ta <85 °C (-40 °F <Ta <185 °F) |
| Emissions |
CISPR 11: Class A |
| Vibration |
2 G @ 10…500 Hz |
| ESD immunity |
6 kV contact discharges, 8 kV air discharges |
| EFT/B immunity |
±3 kV at 5 kHz on Ethernet ports |
| Relative humidity |
5…95% noncondensing |
| Shock |
Operating: 30 G, Nonoperating: 30 G |
| Conducted RF immunity |
10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz |
| Surge transient immunity |
±2 kV line-earth (CM) on Ethernet ports |
| Operating temperature |
0 °C <Ta <60 °C (32 °F <Ta <140 °F) |
| Radiated RF immunity |
10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3V/m with 1 kHz sine-wave 80% AM from 2000…6000 MHz |
| North American temperature code |
T4A |
| IECEx temperature code |
T4 |
