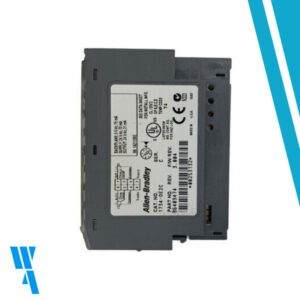

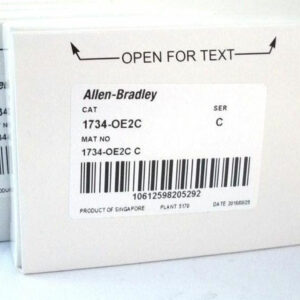

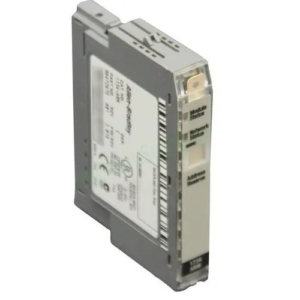

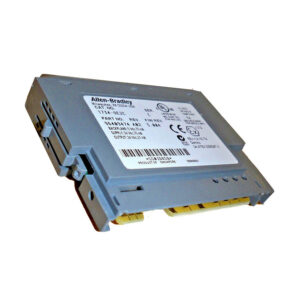

1734-OE2C, Allen Bradley, VDC Logic I/O Module. Output Current, 0/4-20 mA. Analog Outputs, 2. Supply Voltage, 24 VDC
Description
Technical Specifications for 1734-OE2C
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Status indicators | 1 green/red module status indicator, logic side 1 green/red network status indicator, logic side 2 green/red output status indicators, logic side |
| Module Location | 1734-TB, 1734-TBS, 1734-TB3, 17340TB3S wiring base assembly |
| Keyswitch position | 4.00E+00 |
| Enclosure type rating | None (open-style) |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Power Dissipation | 750 ? load on each output – 1.23 W 0? load on each output – 1.83 W |
| Current Draw | 75 mA @5V dc |
| Data Format | Signed Integer |
| Converter Type | Digital to analog converter |
| Step Response (63% of FS) | 24 µs |
| Absolute Accuracy | 0.1% Full Scale @ 25 Deg. Celsius |
| Output signal | 0-20 mA; 4-20 mA |
| No. of outputs | Two (2) Single-ended, non-isolated channels |
| Part Number/Catalog No. | 1734-OE2C |
| Series | POINT I/O |
| Module Type | Analog Output Module |
| Conversion Rate | 16µs |
| Resolution | 13 bits – over 0-21mA 2.5µA/cnt (average value – typical range: 2.3…2.7µA/cnt) |
| Outputs | 2 Single-Ended, Non-Isolated |
| Supply Voltage | 24 Volts DC |
| Output Current | 4-20 or 0-20 milliamps |
| Isolation Voltage | 50 Volts Continuous |
| Conversion Type | Digital-Analog |
| POINTBus Current | 75 milliamps (at 5 Volts DC) |
| Enclosure | Open |
| Dimensions (H x W x L) | 2.21 x 0.47 x 2.97 inches |
| Weight | 1.27 ounces (36 grams) |
| Operating Temperature | -20-55 Celsius |
| UPC | 10612598205292 |
Mas información?
Additional information
| Weight | 0,036 kg |
|---|---|
| Dimensions | 7,5 × 11,9 × 5,6 cm |
