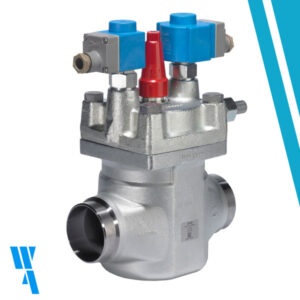

027H6204, DANFOSS REFRIGERACION, Argentina, ICLX 65-80, Valvula, Diámetro, 2-1/2″ [65 mm] o 3″ [80 mm] …
Description
Product details
| Gross weight | 10.986 Kilogram |
| Net weight | 6.745 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428483186 |
| Actuator system | 2 EVM pilot sol valve module |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Cv value [gal/min] | 95 gal/min |
| Description | Function module |
| EU RoHS compliance | Out of scope |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 82 m³/h |
| Manual operation option | Manual open spindle |
| Opening configuration | 1-step (optional setting) 2-step (default) |
| Packing format | Single pack |
| Parts Program name | ICLX |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants |
Mas información?
Additional information
| Weight | 10,0 kg |
|---|
