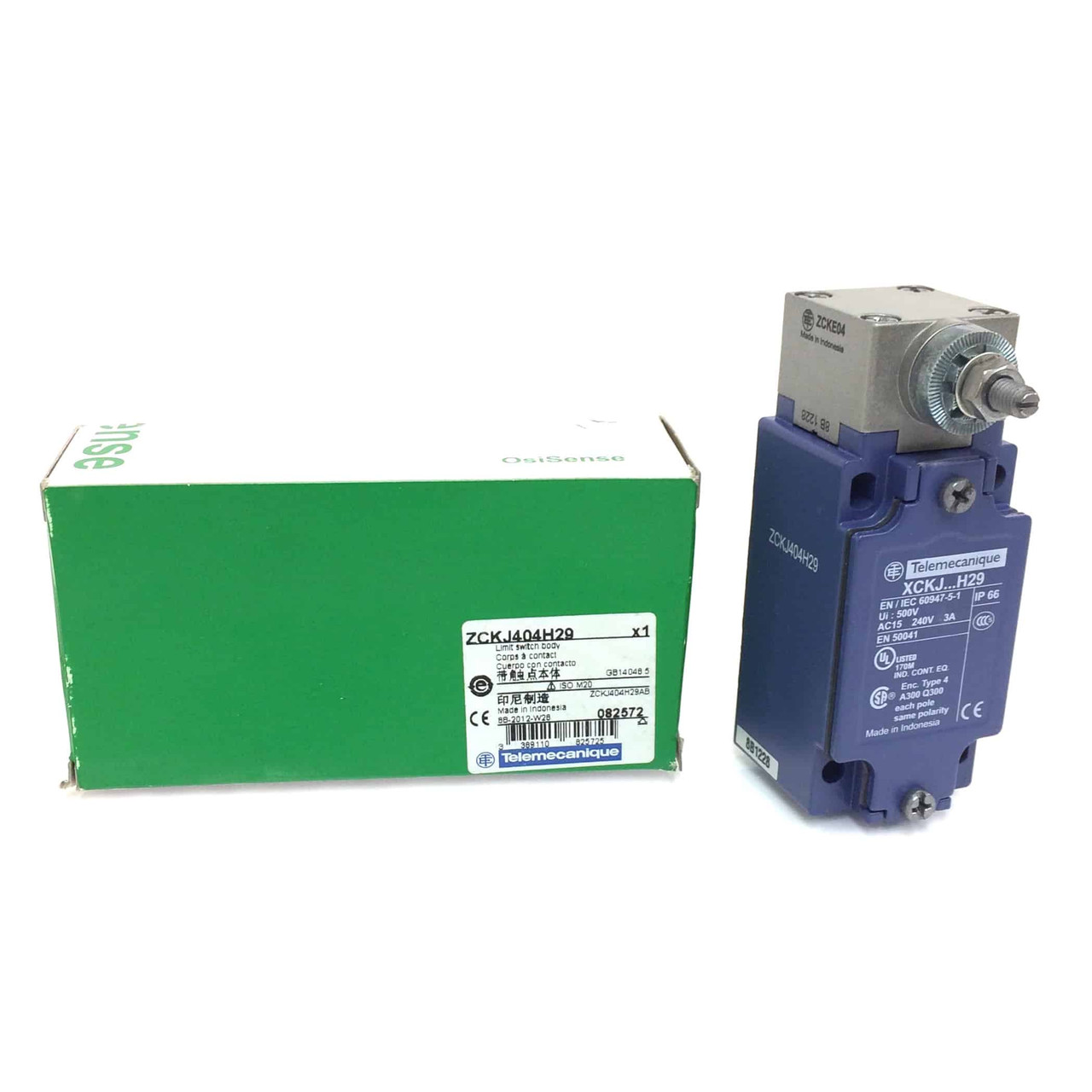

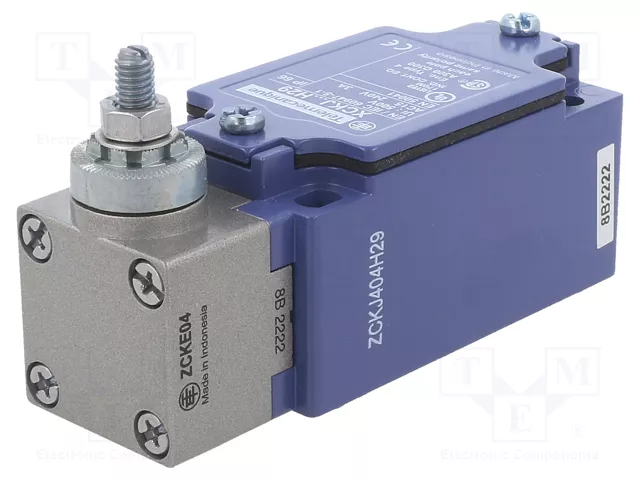

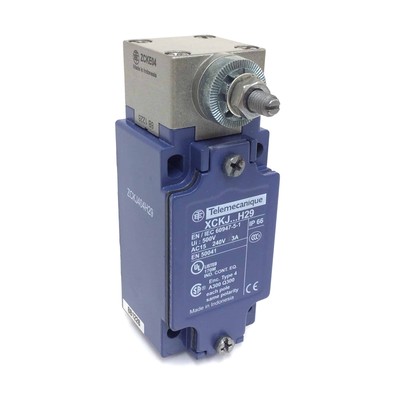

ZCKJ404H29, TELEMECANIQUE, Límite SWITCH, con cabezal giratorio de retorno por resorte, interruptores de límite XC estándar, ZCKJ, sin palanca, fijos, 2C/O, a presión, M20. flecha
Description
| ETIM Class: | End switch |
| Rated operation current Ie at AC-15, 230 V: | 3A |
| Rated operation current Ie at DC-13, 230 V: | 0.27A |
| Suitable for safety functions: | FALSE |
| With status indication: | FALSE |
| Output electronic: | FALSE |
| Rated operation current Ie at AC-15, 125 V: | 0A |
| Rated operation current Ie at AC-15, 24 V: | 0A |
| Forced opening: | FALSE |
| Number of safety auxiliary contacts: | 0 |
| Rated operation current Ie at DC-13, 125 V: | 0A |
| Rated operation current Ie at DC-13, 24 V: | 0A |
| Width sensor: | 40mm |
| Diameter sensor: | 0mm |
| Height of sensor: | 102mm |
| Ambient temperature during operating: | -25 – 70°C |
| Length of sensor: | 60mm |
| Switching function latching: | FALSE |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Switching function: | Quick-break switch |
| Material housing: | Metal |
| Coating housing: | Other |
| Type of interface for safety communication: | None |
| Type of electric connection: | Cable entry metrical |
| Explosion safety category for gas: | None |
| Degree of protection (IP): | IP65 |
| Type of control element: | None |
| Type of interface: | None |
| Explosion safety category for dust: | None |
| Construction type housing: | Cuboid |
| Alignment of the control element: | Other |
MAS INFORMACION? SOLICITE COTIZACION..
Additional information
| Weight | 0,465 kg |
|---|
