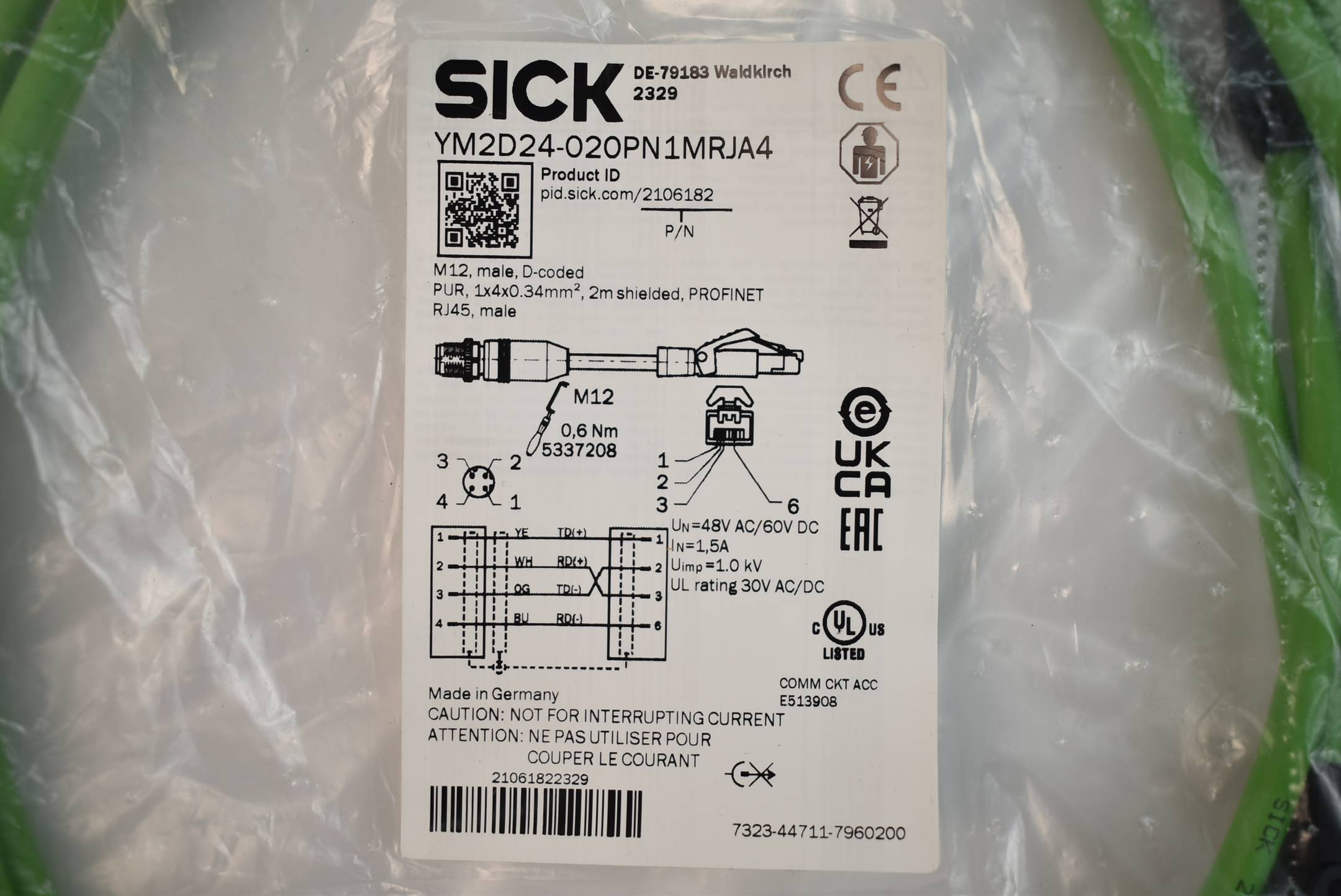

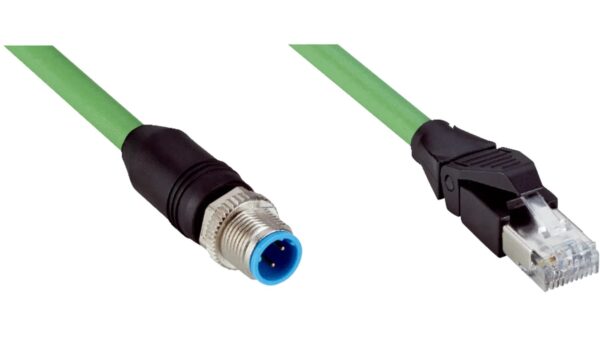

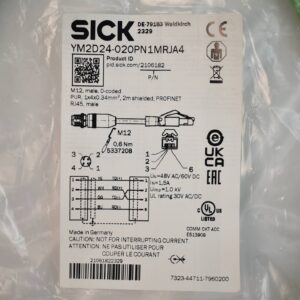

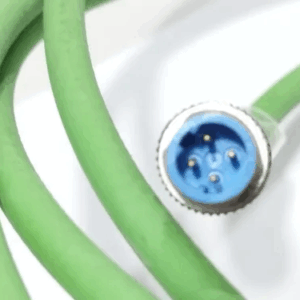

YM2D24-020PN1MRJA4, SICK, Cable,Comunicacion, Ethernet, Recto, Macho, M12, a Macho RJ45, , long. 2m, funda de Poliuretano
Description

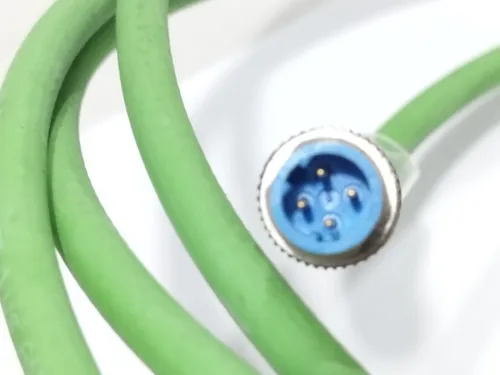

| Connection type head A | Male connector, M12, 4-pin, straight, D-coded | ||||||||||

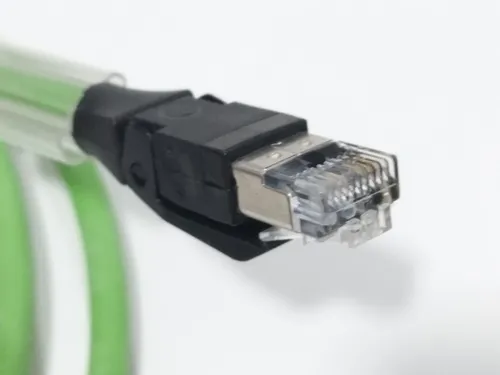

| Connection type head B | Male connector, RJ45, 4-pin, straight | ||||||||||
| Locking plug connector | Screw-on connection (M12), snap-in locking (RJ45) | ||||||||||
| Connector material | TPU | ||||||||||
| Connector color | Black | ||||||||||
| Locking nut material | Zinc die-cast, nickel-plated | ||||||||||
| Tightening torque | 0.6 Nm | ||||||||||
| Width across flats | 13 | ||||||||||

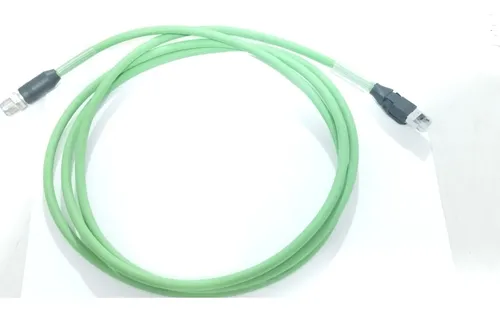

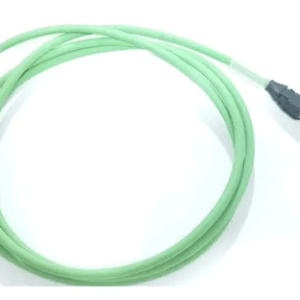

| Cable | 2 m, 4-wire, PUR, halogen-free | ||||||||||
| Jacket material | PUR, halogen-free | ||||||||||
| Jacket color | Green | ||||||||||
| Cable diameter | 6.7 mm | ||||||||||
| Conductor cross section | 0.34 mm² | ||||||||||
| Shielding | Shielded | ||||||||||
|
|||||||||||
| Bending cycles | 3,000,000 | ||||||||||
| Nominal voltage, cable | 300 V AC | ||||||||||
| Test voltage, cable | 2,000 V AC | ||||||||||
|
|||||||||||
| Rated impulse voltage | 1 kV | ||||||||||
| Current loading | 1.5 A | ||||||||||
| Traversing speed | 3.3 m/s | ||||||||||
| Travelling distance | 5 m | ||||||||||
| Acceleration | ≤ 2 m/s² | ||||||||||
| Signal type | Ethernet, PROFINET | ||||||||||
| Transmission characteristics | CAT5e | ||||||||||
| Data transmission rate | ≤ 0.1 Gbit/s | ||||||||||
| Application | Drag chain operation
Zones with oils and lubricants |
||||||||||
| Authorizations | CE
UL |
||||||||||
| Enclosure rating | IP67 (M12), IP20 (RJ45) | ||||||||||
|
|||||||||||
| Contamination rating | 3 | ||||||||||
| Insulation resistance | > 100 MΩ | ||||||||||
| Overvoltage category | III | ||||||||||
| Specific insulation resistance | < 30 mΩ | ||||||||||
| Thermal resistance, piping | Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std. | ||||||||||
Mas Información?
Additional information
| Weight | 0,157 kg |
|---|---|
| Dimensions | 2,0 × 1,2 × 1,2 cm |
