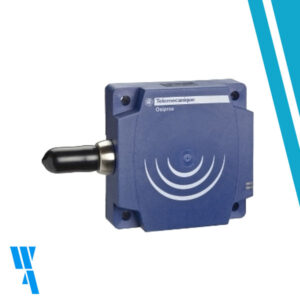

XS8D1A1PAM12, Telemecanique, Sensores de proximidad inductivos XS, sensor inductivo XS8 80x80x26, PBT, Sn60mm, 12…24 VDC, M12

Description

Expandir todo

Ficha de datos

Range of product: Telemecanique Inductive proximity sensors XS

Series name: General purpose

Sensor type: Inductive proximity sensor

Device application

–

Sensor name: XS8

Sensor design: Flat form 80 x 80 x 26

Size: 26 mm

Body type: Fixed

Detector flush mounting acceptance: Non flush mountable

Material: Plastic

Enclosure material: PBT

Type of output signal: Discrete

Wiring technique: 3-wire

[Sn] nominal sensing distance: 40 mm flush mountable
60 mm non flush mountable

Discrete output function: 1 NO

Output circuit type: DC

Discrete output type: PNP

Electrical connection; Male connector M12, 4 pins

[Us] rated supply voltage: 12…24 V DC with reverse polarity protection

Switching capacity in mA: <= 200 mA DC with overload and short-circuit protection

IP degree of protection: IP67 double insulation conforming to IEC 60529
