| Range of product |
Preventa Safety automation |
| Product or component type |
Preventa safety module |

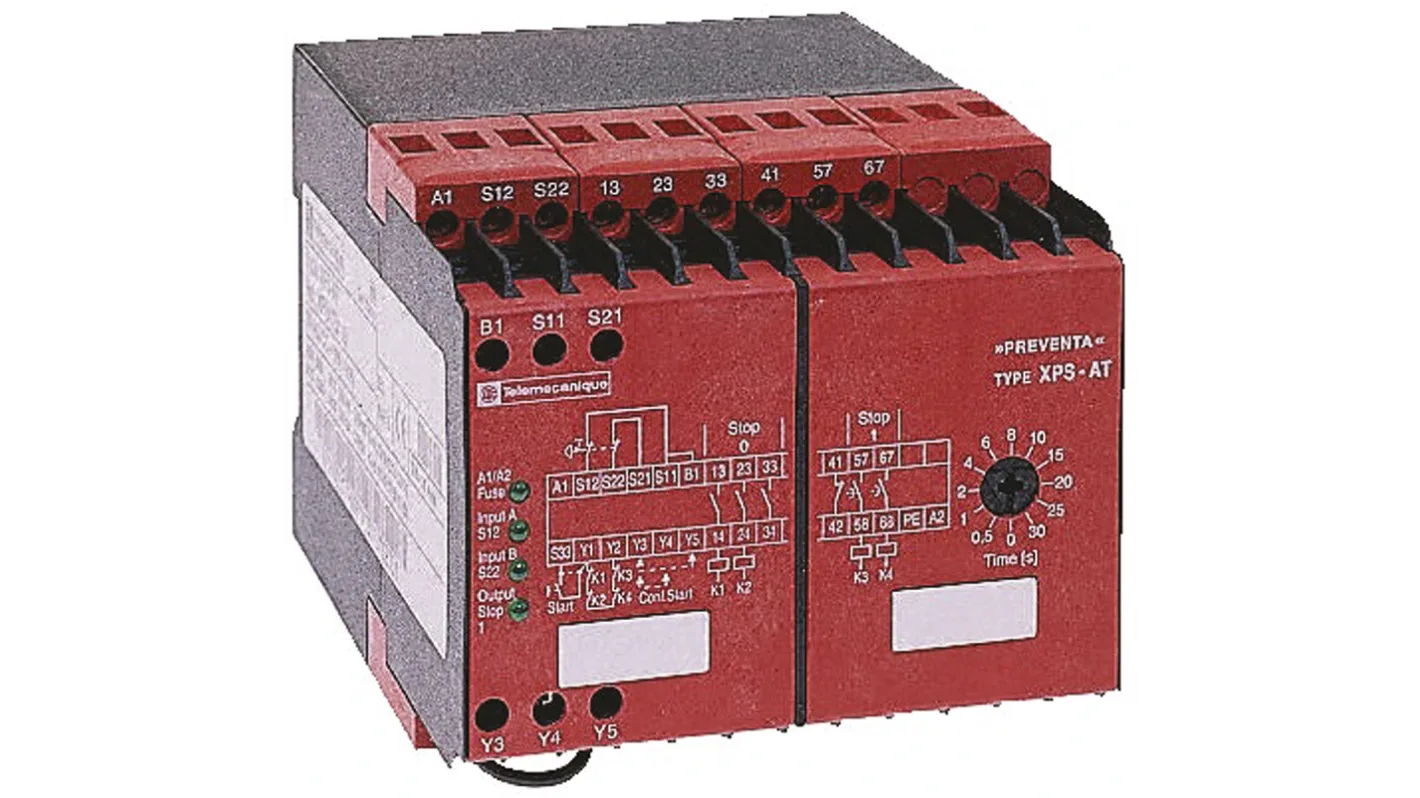

| Safety module name |

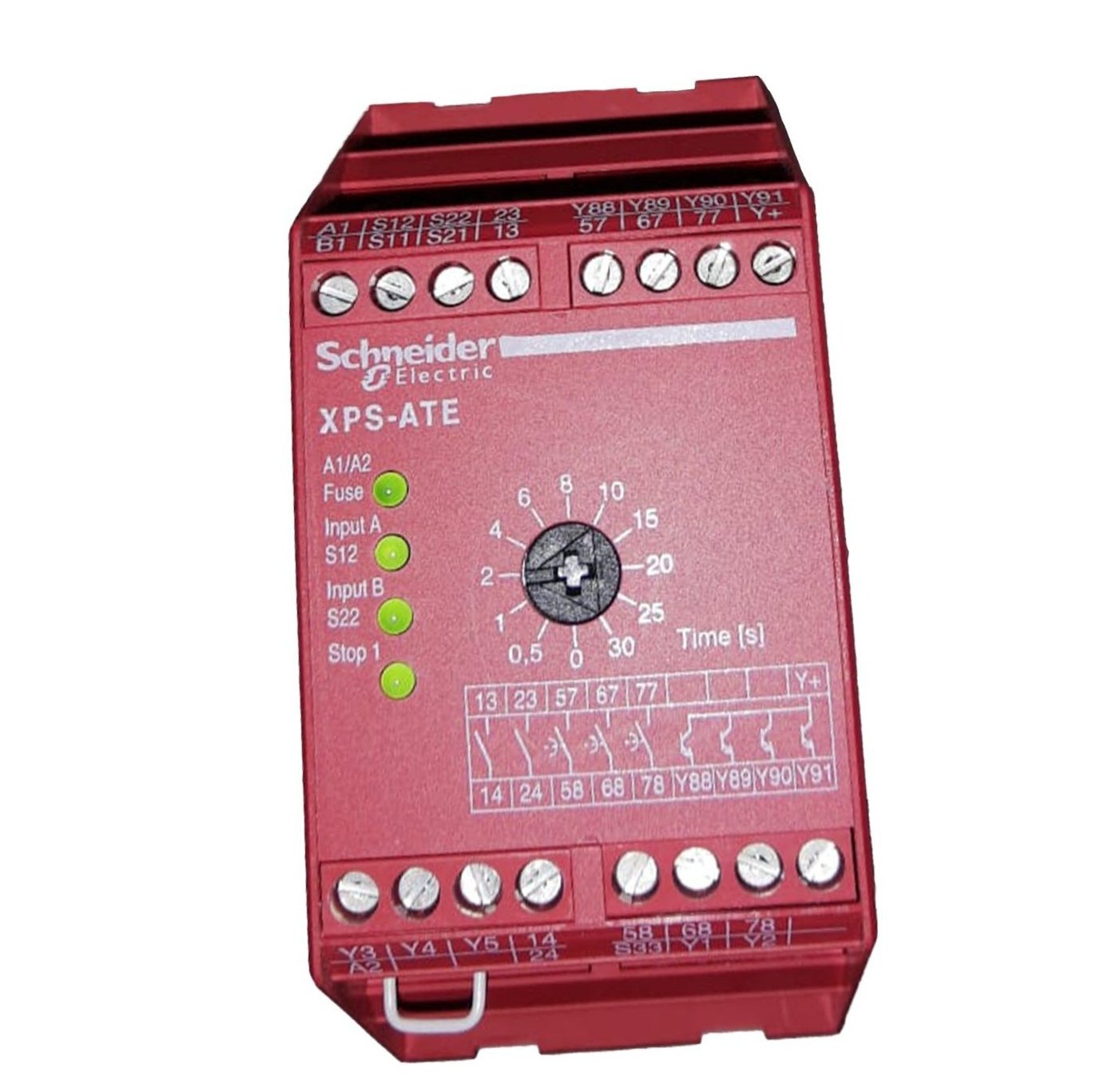

XPSATE |
| Safety module application |
For emergency stop and switch monitoring |
| Function of module |
Emergency stop button with 2 NC contacts |
| Safety level |
Can reach PL d/category 3 time delay safety outputs conforming to EN/ISO 13849-1
Can reach PL e/category 4 instantaneous safety outputs conforming to EN/ISO 13849-1
Can reach SILCL 3 instantaneous safety outputs conforming to EN/IEC 62061
Can reach SILCL 2 time delay safety outputs conforming to EN/IEC 62061 |
| Safety reliability data |
DC > 99 % conforming to EN/ISO 13849-1 instantaneous safety outputs
MTTFd = 134.8 years conforming to EN/ISO 13849-1 instantaneous safety outputs
MTTFd = 54.5 years conforming to EN/ISO 13849-1 time delay safety outputs
DC > 98.4 conforming to EN/ISO 13849-1 time delay safety outputs
PFHd = 6.81E-9 1/h conforming to EN/IEC 62061 instantaneous safety outputs
PFHd = 1.96E-8 1/h conforming to EN/IEC 62061 time delay safety outputs |
| Type of start |
Configurable |
| Connections – terminals |
Captive screw clamp terminals, 1 x 0.14…1 x 2.5 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.14…1 x 2.5 mm² solid with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.25…1 x 1.5 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.25…1 x 2.5 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.14…2 x 0.75 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.14…2 x 0.75 mm² solid with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.25…2 x 1 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.5…2 x 1.5 mm² flexible with cable end, with double bezel |
| Output type |
Relay instantaneous opening, 2 NO circuit(s), volt-free
Relay time delay opening, 3 NO circuit(s), volt-free |
| Number of additional circuits |
3 solid state outputs |
| [Us] rated supply voltage |
115 V AC – 15…15 % |
Complementary
| Synchronisation time between inputs |
75 ms |
| Supply frequency |
50/60 Hz |
| Maximum power consumption in W |
8 W |
| Input protection type |
Internal, electronic |
| Time delay range |
0…30 s |
| [Uc] control circuit voltage |
48 V DC |
| Breaking capacity |
180 VA holding AC-15 C300 relay output
1800 VA inrush AC-15 C300 relay output |
| Breaking capacity |
1 A at 24 V (DC-13) time constant: 50 ms for relay output |
| Output thermal current |
2.5 A for time delay outputs
5 A for instantaneous outputs |
| [Ith] conventional free air thermal current |
8 A |
| Associated fuse rating |
4 A gG for time delay outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
6 A gG for instantaneous outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current |
10 mA for relay output |
| Minimum output voltage |
17 V for relay output |
| Maximum response time on input open |
20 ms |
| [Ui] rated insulation voltage |
300 V (pollution degree 2) conforming to IEC 60947-5-1
300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage |
4 kV overvoltage category III conforming to IEC 60947-5-1
4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Local signalling |
4 LEDs |
| Mounting support |
35 mm symmetrical DIN rail |
| Net weight |
0.38 kg |
