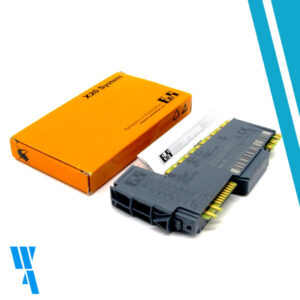

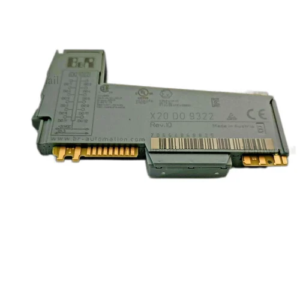

X20DO9322, B&R, módulo de salida digital, 12 salidas, 24 VDC, 0,5 A, fuente, conexiones de 1 cable
Description
El módulo está equipado con 12 salidas para conexiones de 1 hilo. El módulo está diseñado para cableado de salida de fuente.
NÚMERO DE MATERIAL:
X20DO9322
DESCRIPCIÓN:
12 salidas digitales
Conexión de origen
conexiones de 1 cable
Protección de salida integrada
El módulo está equipado con 12 salidas para conexiones de 1 hilo. El módulo está diseñado para cableado de salida de fuente.
Short description
| I/O module | 12 digital outputs 24 VDC for 1-wire connections |
Digital outputs
| Variant | Current-sourcing FET |
| Nominal voltage | 24 VDC |
| Switching voltage | 24 VDC -15% / +20% |
| Nominal output current | 0.5 A |
| Total nominal current | 6 A |
| Connection type | 1-wire connections |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit (see value «Short-circuit peak current») Internal freewheeling diode for switching inductive loads (see section «Switching inductive loads») |
| Diagnostic status | Output monitoring with 10 ms delay |
| Leakage current when the output is switched off | 5 µA |
| RDS(on) | 210 mΩ |
| Peak short-circuit current | <12 A |
| Switch-on in the event of overload shutdown or short-circuit shutdown | Approx. 10 ms (depends on the module temperature) |
| Switching delay | |
| 0 → 1 | <300 µs |
| 1 → 0 | <300 µs |
| Switching frequency | |
| Resistive load | Max. 500 Hz |
| Inductive load | See section «Switching inductive loads». |
| Braking voltage when switching off inductive loads | Typ. 50 VDC |
| Insulation voltage between channel and bus | 500 Veff |
Electrical properties
| Electrical isolation | Channel isolated from bus Channel not isolated from channel and I/O power supply |
B&R, soporte tecnico, reparaciones Argentina.
Support Link,Argentina, B&R, Proveedor, Reparaciones Electrónicas.
Additional information
| Weight | 0,033 kg |
|---|---|
| Dimensions | 10 × 2 × 6 cm |
