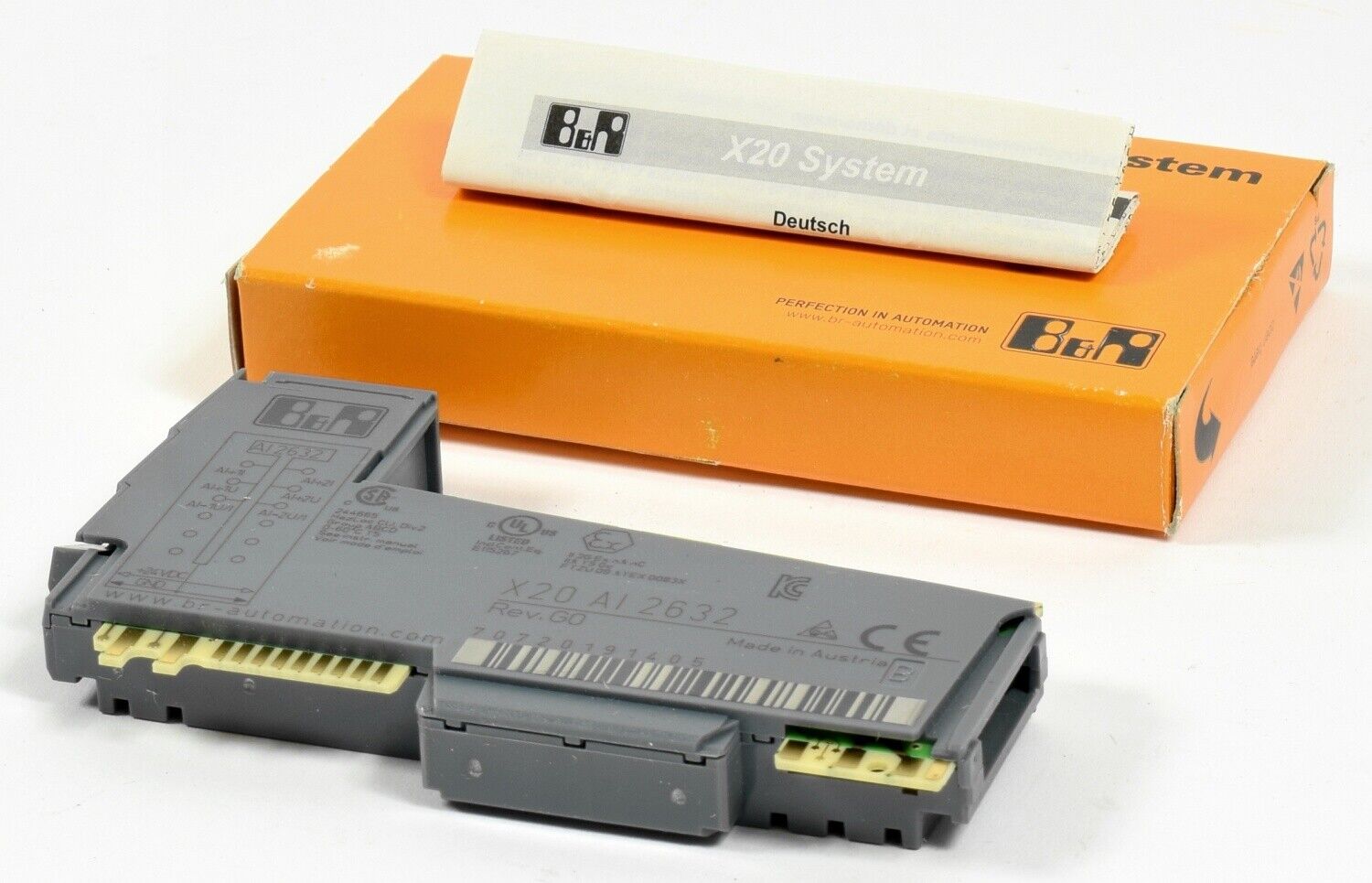

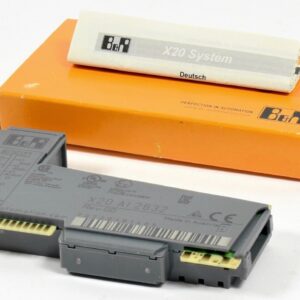

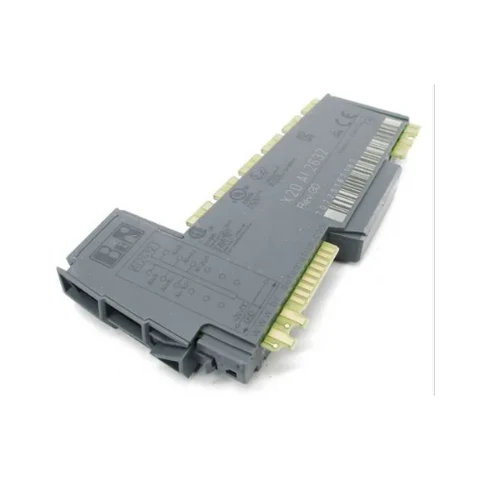

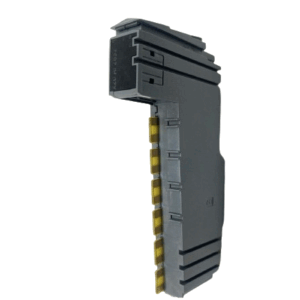

X20AI2632, B&R, X20, Modulo Analogico, 2xI +/-10V/0..20 mA 16 Bit OS, with oscilloscope function
Description
DESCRIPCIÓN:
2 entradas analógicas
Posibilidad de señal de corriente o tensión
Rango de señal extendido
Resolución de convertidor digital de 16 bits
Conversión de entrada simultánea
Tiempo de conversión muy rápido
El módulo cuenta con 2 entradas con una resolución de convertidor digital de 16 bits. Es posible seleccionar entre la señal de corriente y la de tensión mediante diferentes terminales.
Este módulo está diseñado para bloques de terminales X20 de 6 pines. Si es necesario (por ejemplo, por razones logísticas), también se puede utilizar el bloque de terminales de 12 pines.
Short description
| I/O module | 2 analog inputs ±11 V or 0 to 22 mA |
General information
| B&R ID code | 0xA29E |
| Status indicators | I/O function per channel, operating state, module status |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| Inputs | Yes, using LED status indicator and software |
| Channel type | Yes, using software |
| Power consumption | |
| Bus | 0.01 W |
| Internal I/O | 1.2 W |
| Additional power dissipation caused by actuators (resistive) [W] | – |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user’s manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B(0 to 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 – 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC | Yes |
Analog inputs
| Input | ±11 V or 0 to 22 mA, via different terminal connections |
| Input type | Differential input |
| Digital converter resolution | |
| Voltage | ±15-bit |
| Current | 15-bit |
| Conversion time | 50 μs for all inputs |
| Output format | INT |
| Output format | |
| Voltage | INT 0x8001 – 0x7FFF / 1 LSB = 0x0001 = 335.693 µV |
| Current | INT 0x0000 – 0x7FFF / 1 LSB = 0x0001 = 671.387 nA |
| Input impedance in signal range | |
| Voltage | 20 MΩ |
| Current | – |
| Load | |
| Voltage | – |
| Current | <400 Ω |
| Input protection | Protection against wiring with supply voltage |
| Permissible input signal | |
| Voltage | Max. ±30 V |
| Current | Max. ±50 mA |
| Output of digital value during overload | |
| Undershoot | |
| Voltage | 0x8001 |
| Current | 0x0000 |
| Overshoot | |
| Voltage | 0x7FFF |
| Current | 0x7FFF |
| Conversion procedure | SAR |
| Input filter | Hardware – Third-order low-pass filter / cutoff frequency 10 kHz |
| Max. error | |
| Voltage | |
| Gain | 0.08% |
| Offset | 0.01% |
| Current | |
| Gain | 0.08% |
| Offset | 0.02% |
| Max. gain drift | |
| Voltage | 0.01%/°C |
| Current | 0.01%/°C |
| Max. offset drift | |
| Voltage | 0.001%/°C |
| Current | 0.002%/°C |
| Common-mode rejection | |
| DC | 70 dB |
| 50 Hz | 70 dB |
| Common-mode range | ±12 V |
| Crosstalk between channels | <-70 dB |
| Nonlinearity | |
| Voltage | <0.01% |
| Current | <0.015% |
| Insulation voltage between channel and bus | 500 Veff |
Mas información/
Additional information
| Weight | 0,065 kg |
|---|
