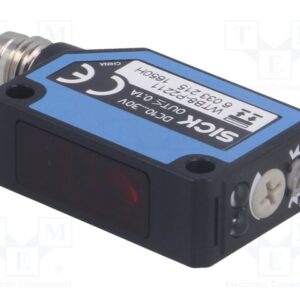

WTB8-P2211, SICK, Sensor, Fotoelectrico, Range, 5÷100mm; PNP, DARK-ON,LIGHT-ON
Photoelectric proximity sensor
Description
Technical Data:
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 11 mm x 31 mm x 20 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm … 100 mm 1) |
| Sensing range | 20 mm … 100 mm 1) |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 4 turns |
- 1) Object with 90% remission (based on standard white, DIN 5033).
- 2) Average service life: 100,000 h at TU = +25 °C.
Additional information
| Weight | 0,2 kg |
|---|---|
| Dimensions | 3,1 × 1,1 × 2 cm |
