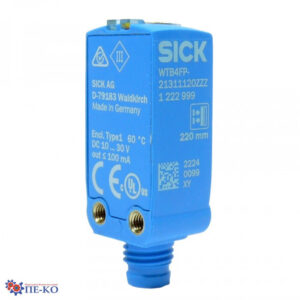

WTB4FT-22161120A00, SICK sensor, Miniature photoelectric sensors W4F
Photoelectric Proximity Sensor, Background Suppression
Description
Photoelectric Proximity Sensor, Background Suppression, Sn= 7 mm … 120 mm, PNP/NPN, M8 4 Pin Male Connector
| Sensing range |
|
| Sensing range min. |
7 mm |
| Sensing range max. |
120 mm |
| Adjustable switching threshold for background suppression |
15 mm … 120 mm |
| Reference object |
Object with 90% remission factor (complies with standard white according to DIN 5033) |
| Minimum distance between set sensing range and background (black 6% / white 90%) |
1 mm, at a distance of 50 mm |
| Recommended sensing range for the best performance |
30 mm … 80 mm |
|
| Emitted beam |
|
| Light source |
PinPoint LED |
| Type of light |
Visible red light |
| Shape of light spot |
Line-shaped, two parallel line-shaped light spots |
| Light spot size (distance) |
1.2 mm x 17 mm (50 mm) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) |
< +/- 1.5° (at Ta = +23 °C) |
|
| Key LED figures |
|
| Normative reference |
EN 62471:2008-09 | IEC 62471:2006, modified |
| LED risk group marking |
Free group |
| Wave length |
635 nm |
| Average service life |
100,000 h at Ta = +25 °C |
|
| Smallest detectable object (MDO) typ. |
|
|
1 mm (At 50 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) |
|
| Adjustment |
|
| Teach-Turn adjustment |
BluePilot: For setting the sensing range |
| IO-Link |
For configuring the sensor parameters and Smart Task functions |
|
| Indication |
|
| LED blue |
BluePilot: sensing range indicator |
| LED green |
Operating indicator
Static on: power on
Flashing: IO-Link mode |
| LED yellow |
Status of received light beam
Static on: object present
Static off: object not present |
|
| Special applications |
Detecting flat objects, Detecting objects wrapped in film, Detecting perforated objects, Detecting uneven, shiny objects |
