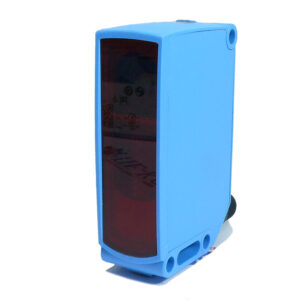

WTB26P-24861120A00, SICK, Compact photoelectric sensors W26
Sensing Distance. 0.394″ ~ 62.992″ (10mm ~ 1.6m) ; Voltage – Supply. 10V ~ 30V
Description
Especificaciones:
| Functional principle |
Photoelectric proximity sensor |
| Functional principle detail |
Background suppression |
| Sensing range |
|
| Sensing range min. |
30 mm |
| Sensing range max. |
1,600 mm |
| Adjustable switching threshold for background suppression |
180 mm … 1,600 mm |
| Reference object |
Object with 90% remission (based on standard white, DIN 5033) |
| Minimum distance between set sensing range and background (black 6% / white 90%) |
40 mm, at a distance of 600 mm |
| Recommended sensing range for the best performance |
200 mm … 600 mm |
|
| Emitted beam |
|
| Light source |
PinPoint LED |
| Type of light |
Visible red light |
| Shape of light spot |
Point-shaped |
| Light spot size (distance) |
Ø 7 mm (700 mm) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) |
< +/- 1.0° (at Ta = +23 °C) |
|
| Key LED figures |
|
| Normative reference |
EN 62471:2008-09 | IEC 62471:2006, modified |
| LED risk group marking |
Free group |
| Wave length |
635 nm |
| Average service life |
100,000 h at Ta = +25 °C |
|
| Adjustment |
|
| Teach-Turn adjustment |
BluePilot: For setting the sensing range |
| IO-Link |
For configuring the sensor parameters and Smart Task functions |
|
| Indication |
|
| LED blue |
BluePilot: sensing range indicator |
| LED green |
Operating indicator
Static on: power on
Flashing: IO-Link mode |
| LED yellow |
Status of received light beam
Static on: object present
Static off: object not present |
|
Additional information
| Weight |
0,2 kg |
| Dimensions |
2,46 × 8,2 cm |
