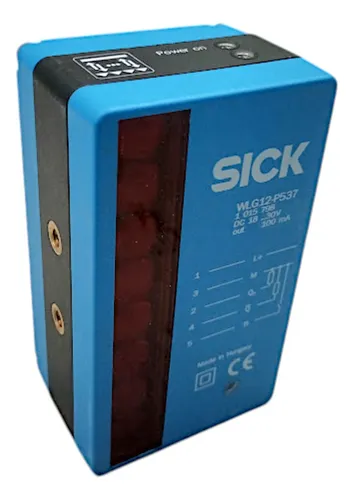

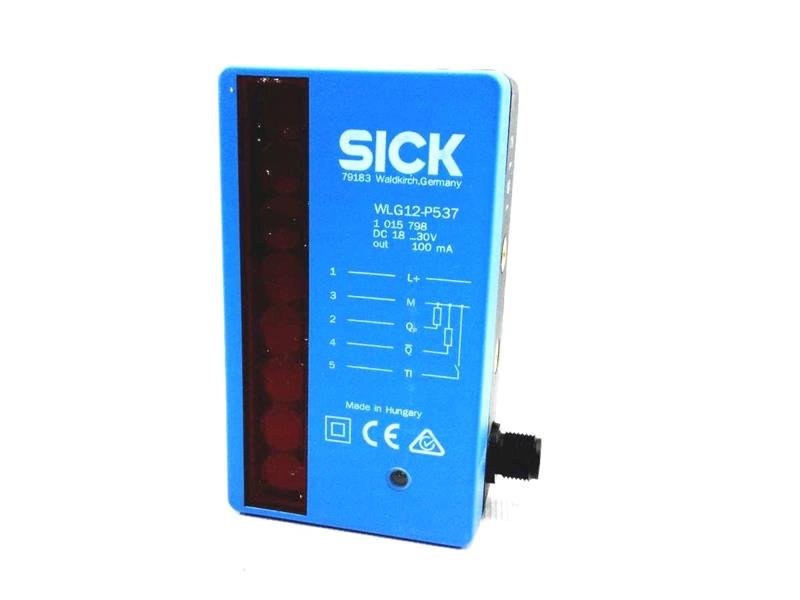

WLG12-P537, SICK, Sensor, regilla, fotoeléctrica retrorreflectante con una altura de detección de 87,5 mm, 2 salidas PNP

Description

Sensor principle Photoelectric retro-reflective sensor

Minimum detectable object (MDO) Parallel beam, 6 mm … 12.5 mm

Beam separation 12.5 mm

Number of beams 8

Detection height 87.5 mm

Resolution (adjustable) 6 mm … 12.5 mm 1)

Wave length 650 nm

Supply voltage Vs DC 18 V … 30 V 1)

Power consumption sender 80 mA

Ripple < 5 Vpp

Output current Imax. ≤ 100 mA

Output load, capacitive 100 nF

Output load, Inductive 1 H

Initialization time 0.6 s

Switching output 2 x PNP 2)

Output mode Q dark switching 3)

Teach-in input PNP

Dimensions (W x H x D) 62 mm x 106 mm x 46.6 mm

Mas Informacion?

Additional information

Weight	0215 kg
Dimensions	4,66 × 6,2 × 10,6 cm
