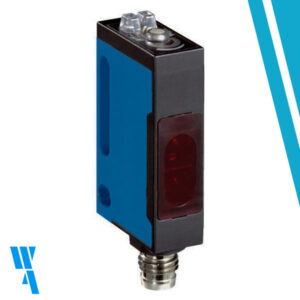

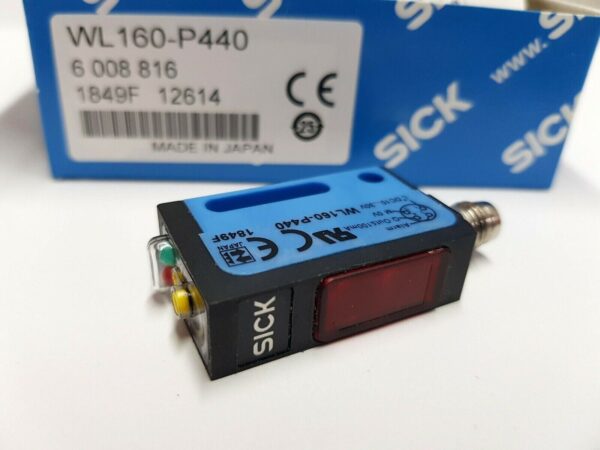

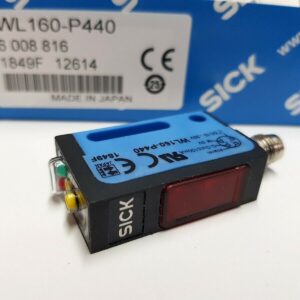

WL160-P440, SICK, retro-reflectivo, sensor, Sn:3m, LED, PNP, m8, 4PIN

Description

Functional principle Photoelectric retro-reflective sensor

Dimensions (W x H x D) 11 mm x 38 mm x 38 mm

Housing design (light emission) Rectangular

Sensing range max. 3 m 1)

Type of light Visible red light

Light source LED

Wave length 680 nm

Ripple ± 10 %

Current consumption 30 mA 1)

Switching output PNP

Switching mode Light/dark switching

Switching mode selector Selectable via light/dark rotary switch

Response time ≤ 0.9 ms 2)

Connection type Male connector M8, 4-pin

Housing material Plastic, ABS

Optics material Plastic, PMMA

Ambient operating temperature –25 °C … +55 °C

Ambient temperature, storage –40 °C … +70 °C

UL File No. NRNT2.E128350 & NRNT8.E128350

Mas Información?

Additional information

Weight	0,075 kg
