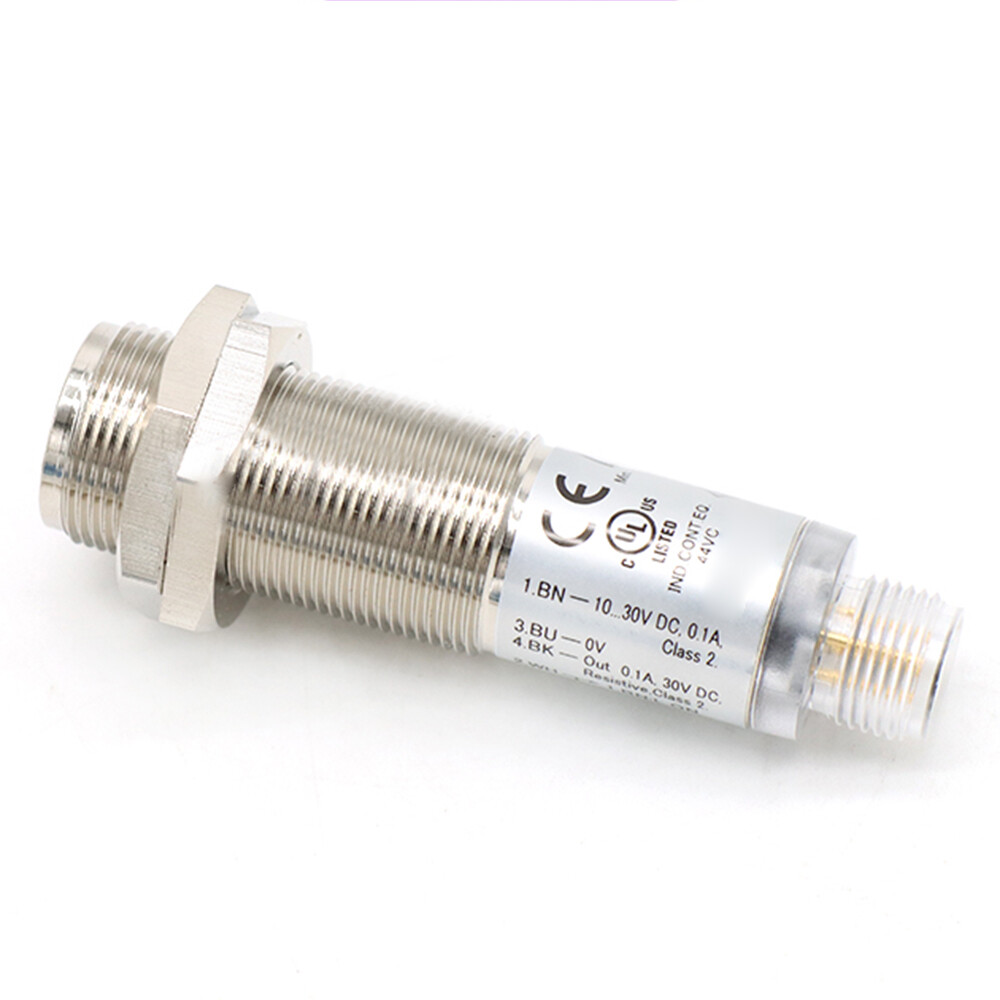

VTF180-2P42412, SICK, Sensor Fotoelectrico, difuso, M18, 1-140mm, LED,
Description
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background blanking |
| Dimensions (W x H x D) | 18 mm x 18 mm x 69.8 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 69.8 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 1 mm … 140 mm 1) |
| Sensing range | 1 mm … 100 mm 1) |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 8 mm (100 mm) |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Special feature | Focused optics |
Mas Información?
Additional information
| Weight | 0,083 kg |
|---|---|
| Dimensions | 6,98 × 1,8 × 1,8 cm |
