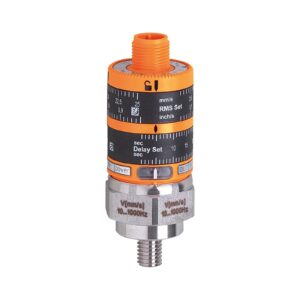

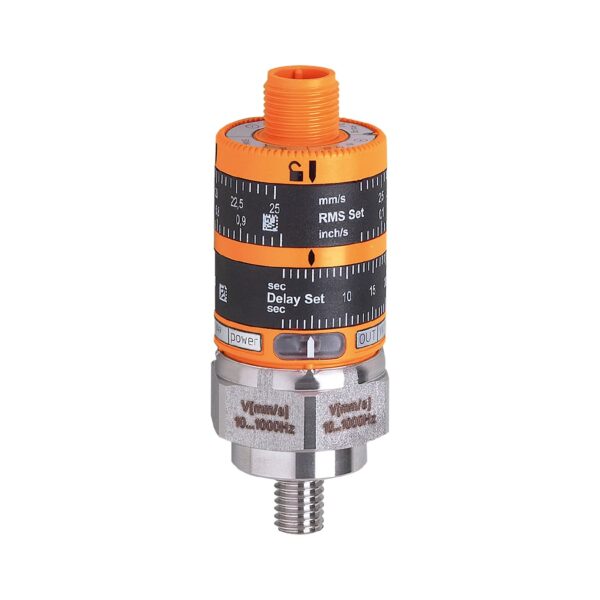

VKV201, IFM, Sensor de vibración con salida analógica, 4-20 mA, 0-25 mm/seg
Description
Monitoreo permanente y fiable de la vibración total según DIN ISO 10816
Salida de conmutación con punto de conmutación y retardo de respuesta ajustables
Ajuste sencillo del punto de conmutación mediante dos anillos de ajuste que permiten una lectura óptima
Con salida de corriente analógica para la velocidad de vibración
LED claramente visibles para indicar el estado de conmutación y el funcionamiento
Product characteristics
Measuring range of vibration[mm/s] 0…25; (RMS)
Frequency range[Hz] 10…1000
Application
Application vibration monitor to DIN ISO 10816
Electrical data
Operating voltage[V] 18…32 DC
Current consumption[mA] < 50
Protection class III
Sensor type microelectromechanical system (MEMS)
Inputs / outputs
Total number of inputs and outputs 2
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Output signal switching signal; analogue signal
Electrical design PNP
Number of digital outputs 1
Output function normally closed
Max. voltage drop switching output DC[V] 2
Permanent current rating of switching output DC[mA] 500
Number of analogue outputs 1
Analogue current output[mA] 4…20
Max. load[Ω] 500
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Measuring/setting range
Measuring range of vibration[mm/s] 0…25; (RMS)
Frequency range[Hz] 10…1000
Number of measurement axes 1
Accuracy / deviations
Measuring error[% of the final value] < ± 3
Linearity deviation 0,25 %
Response times
Response time[s] 1…60
Software / programming
Mas Información?
>>> VKV021-03_EN-GB
>>> 0900766b815319ae
Additional information
| Weight | 0,113 kg |
|---|
