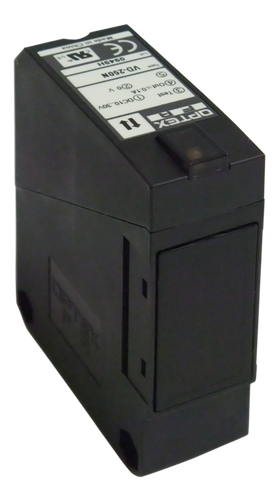

Sensor de modo difuso con una distancia de detección de hasta 2,5 metros

M12, 4 cables, desconexión rápida
Alimentación de 10 a 30 VCC
Salida NPN
Equivalente a la pieza Sick Optex WT260-F480

Series: V
Sensor Body Type
Compact Rectangular Plastic
Sensor Body Feature
H83 x W63 terminal chamber, includes bracket
Sensing Mode: Diffuse
Sensing Mode Details: 2.5m sensing distance (400mmx400mm white target)
Sensor Features: 1-turn potentiometer, 5ms response, 20% hysteresis
Light Source: Infrared LED
Supply Voltage Details: 10 to 30VDC
Sensing Range: 2.5 meter
Output: PNP
Output Details: 1 each PNP
Timer: No
Output Mode: Light-On/Dark-On selectable
Construction: ABS housing, PMMA lens
Temperature: -25º to +55º C
IEC/Nema Rating Details: IP67
Connection Detail: M12 4P QD
