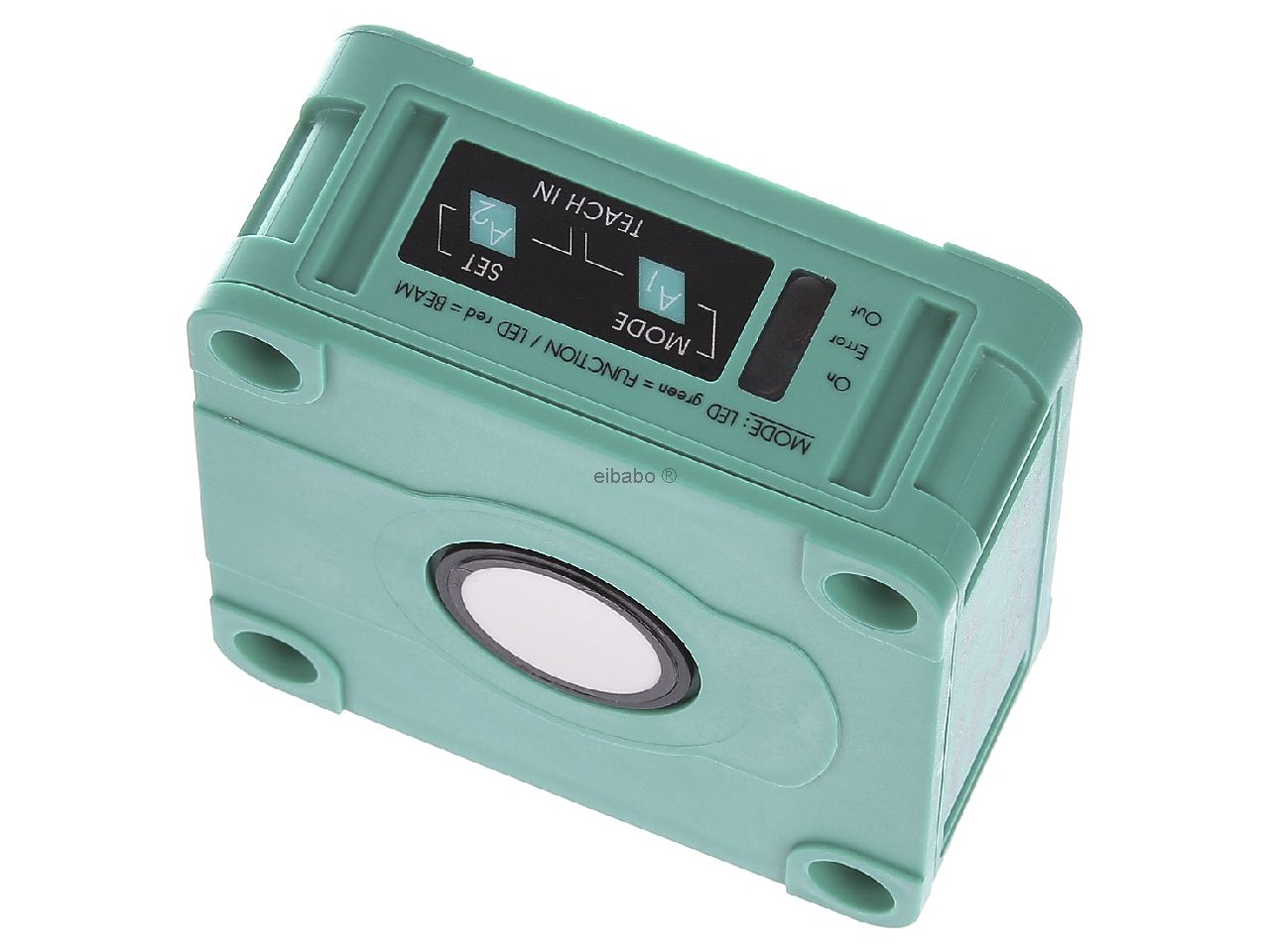

UB500-F42-E5-V15, PEPPERL+FUCHS, Sensor de proximidad ultrasónico 1,181″ ~ 19,685″ (30 mm ~ 500 mm), IP54
Description
| Type of sensor | ultrasonic |
| Body material | PBT |
| Max. operating current | 200mA |
| Connection | M12 male |
| No. of pins | 5 |
| Operating temperature | -25…70°C |
| IP rating | IP65 |
| Symbol | Range | Output conf. | Usup | Body dim. | fswitch. max |
|---|---|---|---|---|---|
| [mm] | [V DC] | [mm] | [Hz] | ||
| UB500-F42-I-V15 | 30…500 | analogue 4-20mA | 10…30 | 80x80x34 | – |
| UB500-F42-U-V15 | 30…500 | 0-10V analogue | 17…30 | 80x80x34 | – |
| UB2000-F42-E5-V15 | 60…2000 | PNP / NO / NC | 10…30 | 80x80x34 | 2.7 |
| UB2000-F42-I-V15 | 60…2000 | analogue 4-20mA | 10…30 | 80x80x34 | – |
| UB2000-F42-U-V15 | 60…2000 | 0-10V analogue | 17…30 | 80x80x34 | – |
| UB4000-F42-E5-V15 | 200…4000 | PNP / NO / NC | 10…30 | 80x80x34 | 1.2 |
| UB4000-F42-I-V15 | 200…4000 | analogue 4-20mA | 10…30 | 80x80x34 | – |
| UB4000-F42-U-V15 | 200…4000 | 0-10V analogue | 17…30 | 80x80x34 | – |
| UB6000-F42-E5-V15 | 350…6000 | PNP / NO / NC | 10…30 | 80x80x34 | 0.6 |
| UB6000-F42-U-V15 | 350…6000 | 0-10V analogue | 17…30 | 80x80x34 | – |
Mas Información?
>>>111701_spa
Additional information
| Weight | 0,150 kg |
|---|---|
| Dimensions | 3,4 × 8,0 × 8,0 cm |
