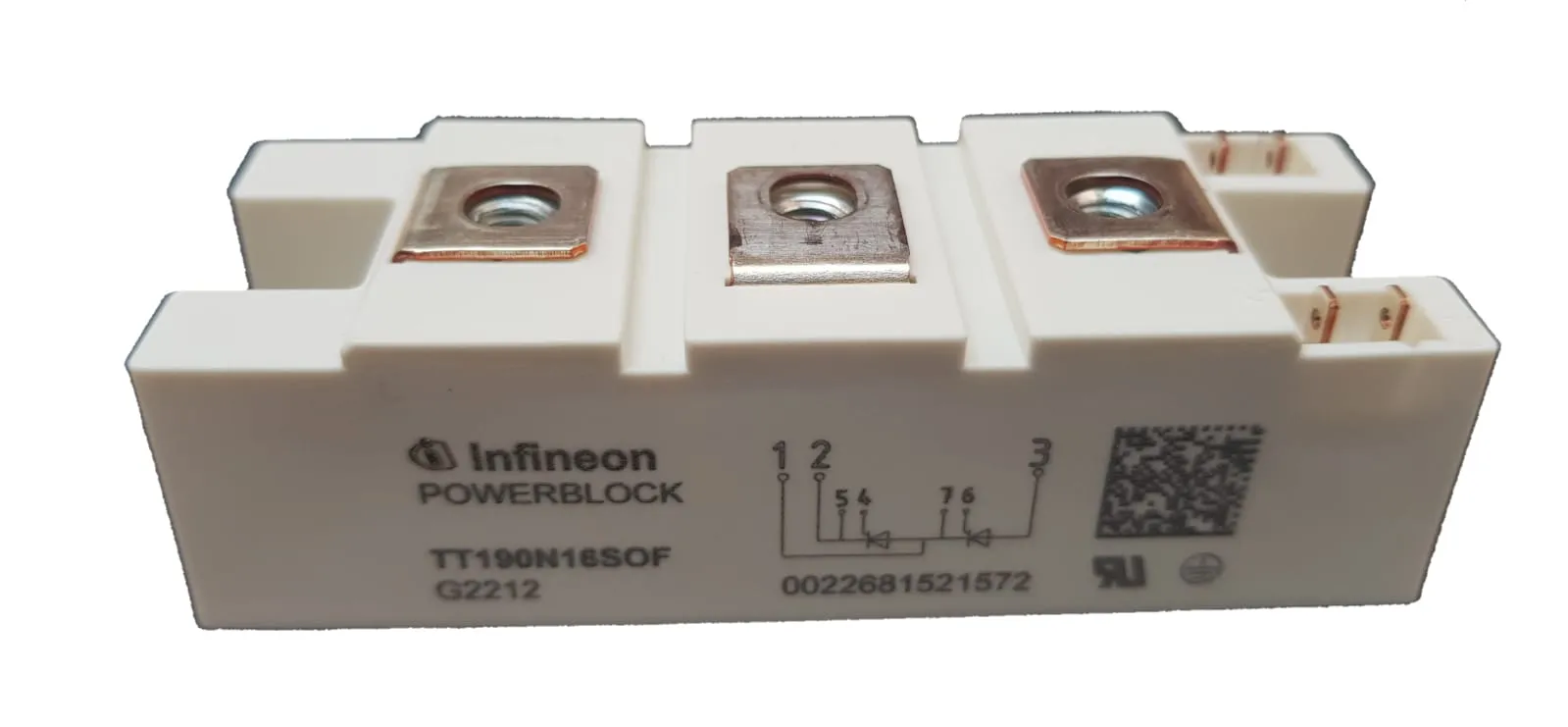

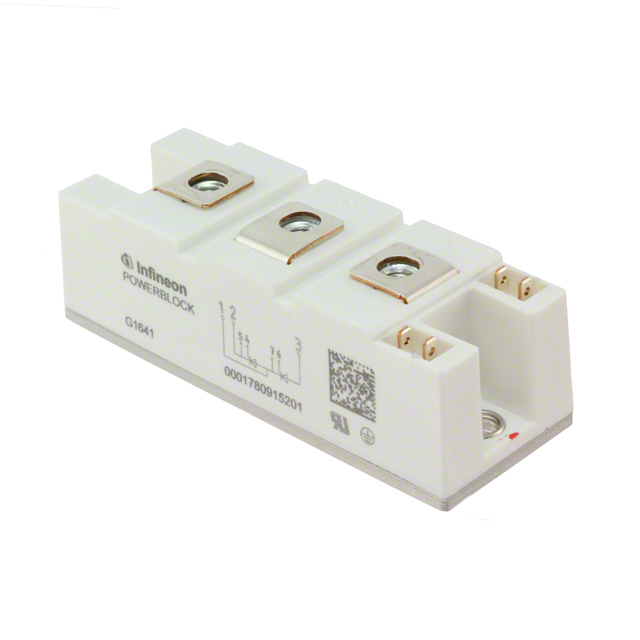

TT190N16SOF, Infineon Technologies,Módulo tiristor1600 VDRM, 4500 Amp, 34mm
Description
SP001206302,
TT190N16SOFHPSA2
-
(diT/dt)cr [A/µs] (@DIN IEC 747- 6): 100
-
Configuration: SCR / SCR Phase Control
-
Housing: 34 mm
-
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin): 190/85
-
IFSM / ITSM [A] (@10ms, Tvj max): 4500
-
Product Line: Eco Block
-
rT [mΩ] (@Tvj max): 0.9
-
RthJC [K/W] (@180° el sin): 0.145
-
Tvj [°C]: 125
-
VDRM / VRRM [V]: 1600
-
VT0 [V] (@Tvj max): 0.85
-
∫I2dt [A²s · 103] (@10ms, Tvj max): 101.3
Solicite información y cotizaciones.
