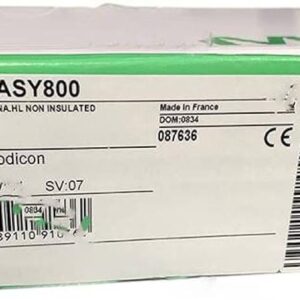

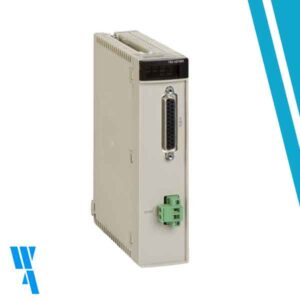

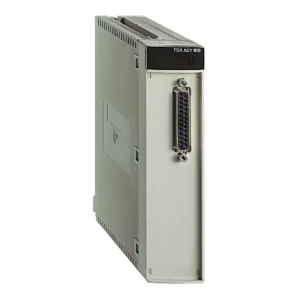

TSXASY800, Schneider Electric, modulo de salida analogica, Modicon Premium, 8 salidas de alto nivel, 13 bits de coversion
Description
| Range of Product | Modicon Premium Automation platform |
|---|---|
| Product or Component Type | Analog output module |
| Analogue output number | 8 |
| Analogue output type | Current 0…20 mA Current 4…20 mA Voltage +/- 10 V |
| Analog/digital conversion | 13 bits + sign +/- 10 V 13 bits 0…20 mA 13 bits 4…20 mA |
| Conversion time | 5 ms |
|---|---|
| Measurement resolution | 1.28 mV +/- 10 V 2.56 µA 0…20 mA 2.56 µA 4…20 mA |
Descontinuado: 02 December 2020
Consulte reemplazos.
Reemplazo: analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, BMXAMO0802
Mas información de este producto?
Additional information
| Weight | 0,780 kg |
|---|---|
| Dimensions | 15,20 × 5,10 × 12,70 cm |
