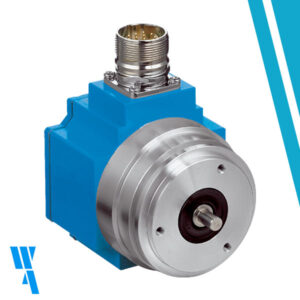

SRM50-HXV0-K22 , Sick, HIPERFACE®, SRS/SRM50, SISTEMAS DE RETROALIMENTACIÓN DEL MOTOR HIPERFACE ROTATIVO

Sine/cosine periods per revolution

1,024

Number of the absolute ascertainable revo- lutions

4,096

Total number of steps

134,217,728

Measuring step

0.3 ′′ For interpolation of the sine/cosine signals with, e. g., 12 bits

Integral non-linearity

Typ. ± 45 ′′, Error limits for evaluating sine/cosine period

Differential non-linearity

±7 ′′

Operating speed

≤ 6,000 min−1, up to which the absolute position can be reliably produced

Available memory area

1,792 Byte

System accuracy

± 52 ′′

Type of code for the absolute value

Binary

Code sequence

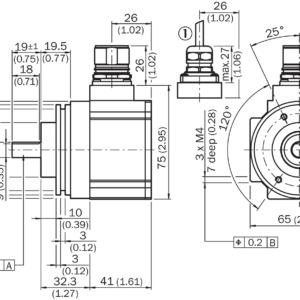

Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimen- sional drawing), For clockwise shaft rotation, looking in direction “A” (see dimensional drawing)

Communication interface

HIPERFACE®
