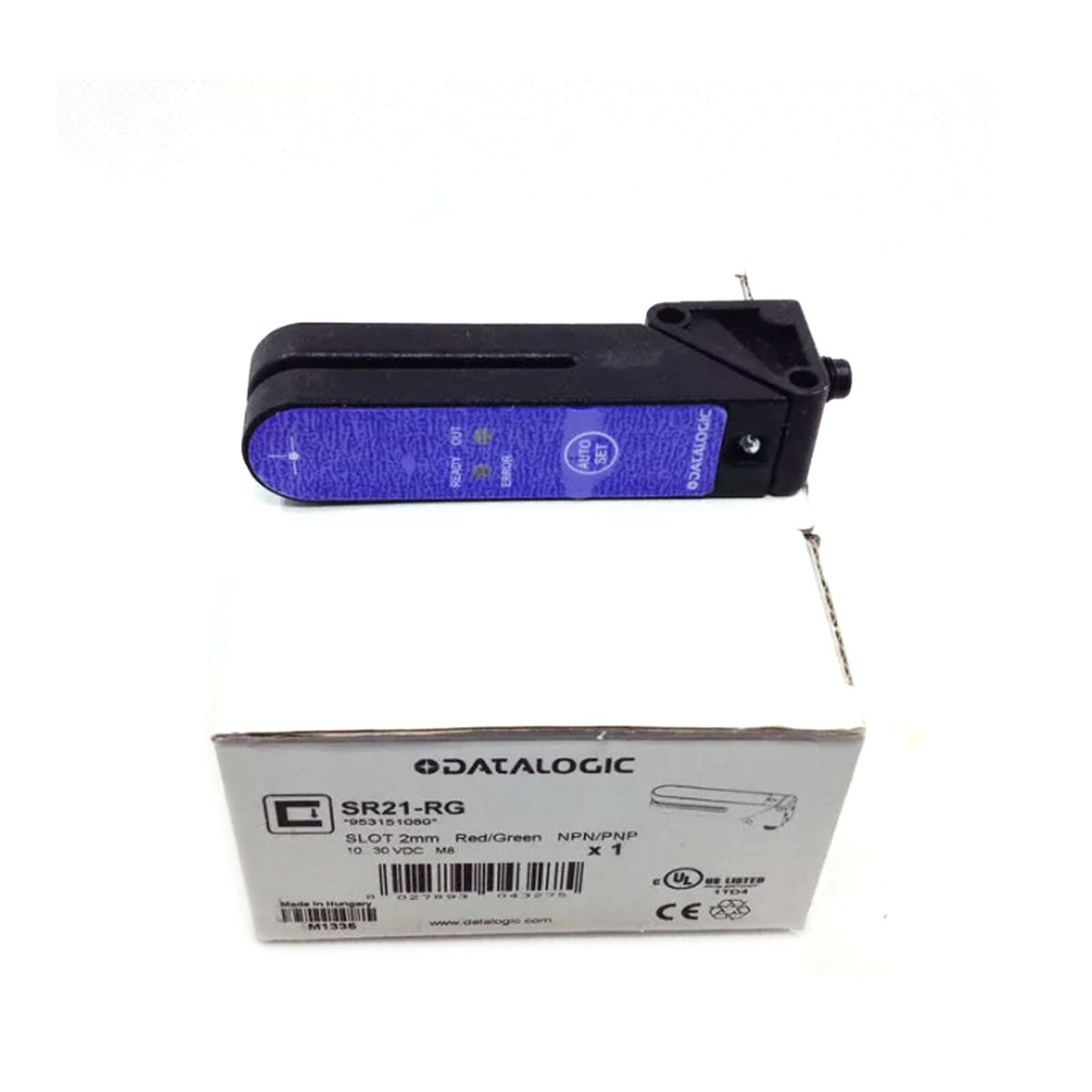

SR21-RG, DATALOGIC, Sensor de etiquetas, rojo/verde pnp/npn M8, 2mm, PNP, NPN, 25KHZ
17 de julio de 2025
SR21-IR, Datalogic, Sensores fotoeléctricos, Slot, SR21 Series, 2 mm, NPN / PNP, 10-30VDC.
Description
Sensor fotoeléctrico Horquilla fotoeléctrica Emisión LED infrarroja Sensor de etiquetas infrarrojo pnp/npn – M8
SENSORES DE HORQUILLA DE ALTA RESOLUCIÓN DE 2 MM PARA ETIQUETADO Y EMBALAJE
- 25 kHz high switching frequency
- IR or red/green light models
- Detection of labels (SR21-IR) or print register mark on transparent films (SR21-RG)
- 4 wire NPN and PNP output
Detection properties
| Nominal sensing distance | 2mm |
| minimum detectable object | 0,5mm |
| Sensitivity adjustment | Teach-in |
Application
| Function Principle | Fork for label detection |
| Description | Compact – fork 2×50 mm |
| Functions | Fork for label detection |
Outputs
| Output type | NPN/PNP L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 25kHz |
| Response time | 0,02 |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 55mA |
| Load current | ≤100mA |
| Output voltage drop | ≤2V@Iload=100mA |
| LED indicators | Yellow (status output), Green/Red (Read/Error) |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mas información? Datalogic Argentina, Proveedor
Additional information
| Weight | 0,115 kg |
|---|---|
| Dimensions | 9,0 × 2,6 × 20 cm |
