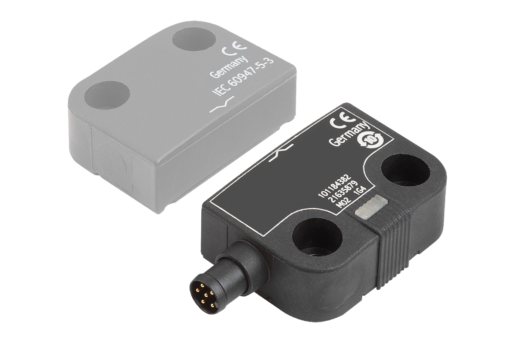

SR AD40ALK-A01N, Pizzato, Sensor magnético, codificado de seguridad con actuador, contactos 2NC, rango de 5 mm, conector M8 de 4 polos.

Description

PRODUCT DETAILS

ETIM Group: Sensors

ETIM Class: Magnetic proximity switch

Coating housing: Other

Construction type housing: Cuboid

Degree of protection (IP): IP67

Explosion safety category for dust: None

Explosion safety category for gas: None

Material housing: Plastic

Mechanical mounting condition for sensor: Concise

Number of protected semiconductor outputs: 0

Number of semiconductor outputs with signalling function: 0

Performance level according to EN ISO 13849-1: Level e

SIL according to IEC 61508: 3

Suitable for safety functions: true

Type of actuation: Magnet

Type of electric connection: Connector M8

Type of interface for safety communication: Other

Type of switching output: Dry reed contact

Mas Información?

Additional information

Weight	0,065 kg
