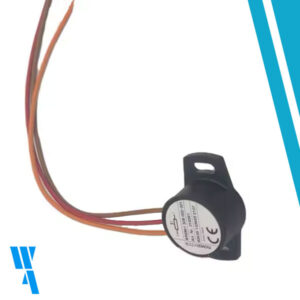

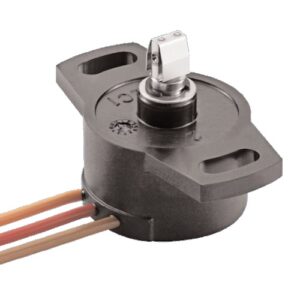

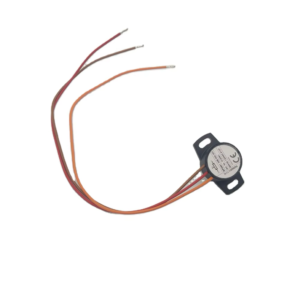

SP2841 A502, NOVOTECHNIK, Sensor de ángulo, transductores de posición, 308°, push-on coupling, IP65
Description
Número de Modelo: SP2841 308 000 001
Tipo SENSOR DE ÁNGULO
Lugar del origen: Germany
Marca Novotechnik
Teoría Potenciómetro
Salida Sensor analógico
Sensor de ángulo
Material conductor de alta temperatura
Clase de protección IP54 o 65
Order designations
Type Art. No.
SP2801 308 000 001 Art. 019520 < )
308°, 6 mm shaft, IP 54
SP2821 308 000 001 Art. 019540 < )
308°, push-on coupling, IP 54
SP2831 308 000 001 Art. 019521 < )
308°, 6 mm shaft, IP 65
SP2841 308 000 001 Art. 019541 < )
308°, push-on coupling, IP 65
SP2801 100 002 001 Art. 019522 <)
100°, 6 mm shaft, IP 54,
SP2831 100 002 001 Art. 019527 < )
100°, 6 mm shaft, IP 65,
SP2841 100 002 001 Art. 019542 < )
100°, push-on coupling, IP 65
SP2841 345 065 001 Art. 019564 < )
345°, push-on coupling, IP 65
SP2841 100 067 006 Art. 0195652 channel (electrically redundant, drawing on request),
push-on coupling, IP65
per track: < )
100° ±2°, 3 kΩ ±20 %, indepen. linearity ±1.0 %
Type Art. No.
SP2801 308 000 001 Art. 019520 < )
308°, 6 mm shaft, IP 54
SP2821 308 000 001 Art. 019540 < )
308°, push-on coupling, IP 54
SP2831 308 000 001 Art. 019521 < )
308°, 6 mm shaft, IP 65
SP2841 308 000 001 Art. 019541 < )
308°, push-on coupling, IP 65
SP2801 100 002 001 Art. 019522 <)
100°, 6 mm shaft, IP 54,
SP2831 100 002 001 Art. 019527 < )
100°, 6 mm shaft, IP 65,
SP2841 100 002 001 Art. 019542 < )
100°, push-on coupling, IP 65
SP2841 345 065 001 Art. 019564 < )
345°, push-on coupling, IP 65
SP2841 100 067 006 Art. 0195652 channel (electrically redundant, drawing on request),
push-on coupling, IP65
per track: < )
100° ±2°, 3 kΩ ±20 %, indepen. linearity ±1.0 %
Mas Información?
>>>SP2800
Additional information
| Weight | 0,037 kg |
|---|
