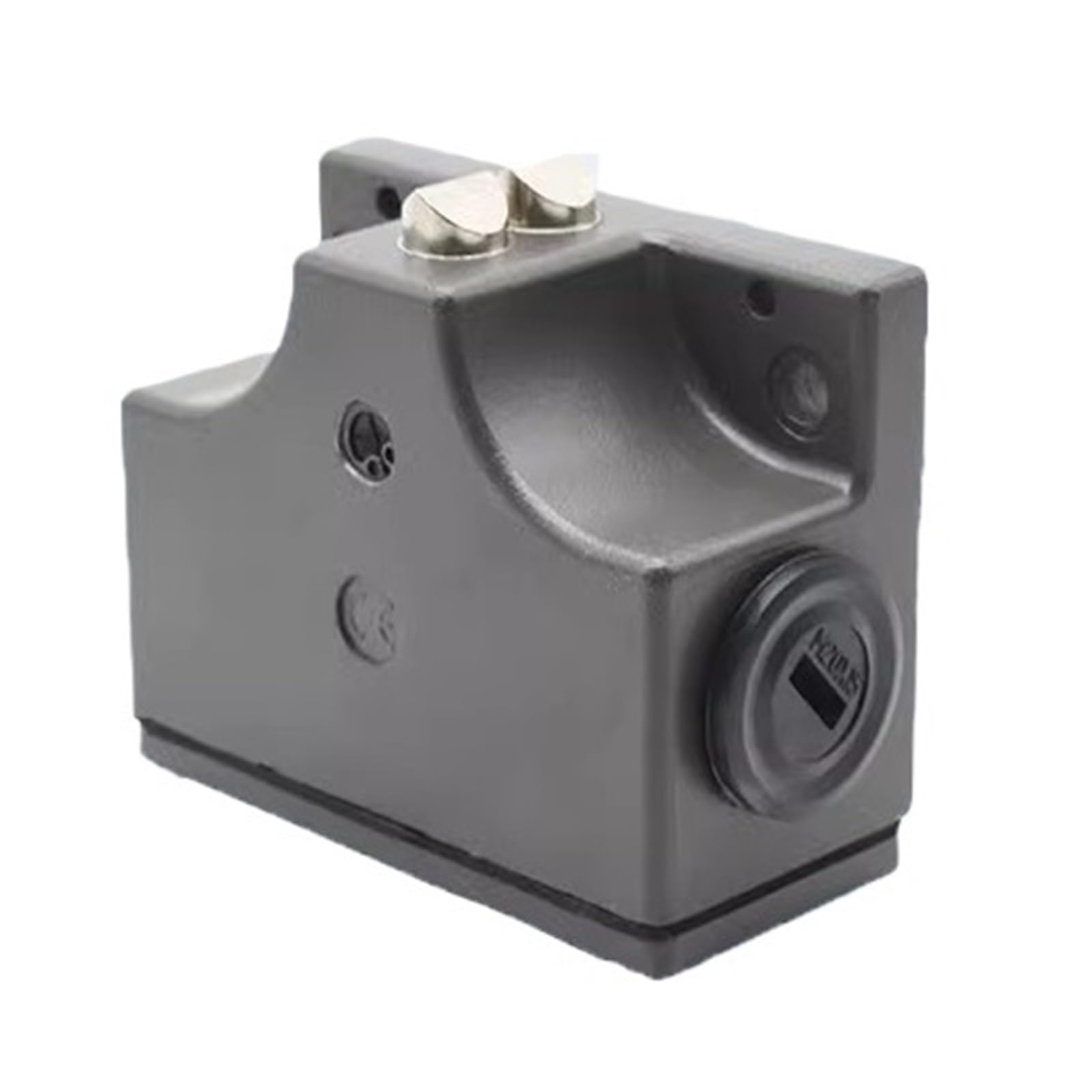

SN02D12-502-MC1688, EUCHNER, Series SN… 12 mm, mechanical, Snap-action switching contact 1 NC + 1 NO
Description
Distancia entre émbolos: 12 mm
Carcasa vertical, brida pequeña
Grado de protección IP67 según IEC 60529
| ES 502 E | Snap-action switching contact 1 NC + 1 NO |
Electrical connection values
| Fuse | max. 8 A gG |
| Connection cross section | 0.34 … 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 6 A 230 V |
| AC-12 | 8 A 250 V |
| DC-13 | 6 A 24 V |
| Switching current | |
| min. at DC 12V | min. 10 mA |
| thermal rated current Ith | 8 A |
Mechanical values and environment
| Anfahrgeschwindigkeit | 0.01 … 40 m/min |
| Connection type | 2 x M20 x 1.5 |
| Number NC contacts | 2 |
| Number of switching elements | 2 |
| Number of NO contacts | 2 |
| Design | upright |
| Actuating element | Chisel plunger |
| Actuating force | min. 20 N |
| Installation orientation | any |
| Storage temperature | -25 … 80 °C |
| Mechanical life | 30 x 10⁶ |
| Contact bounce time | max. 3 ms |
| Switching principle | Snap-action switching contact |
| Operating point accuracy | ± 0,002 |
| Schließzeit | max. 4 ms |
| Degree of protection | IP67 |
| Plunger spacing | 12 mm |
| Ambient temperature | -5 … 80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Die-cast aluminum, anodized |
Variantes:

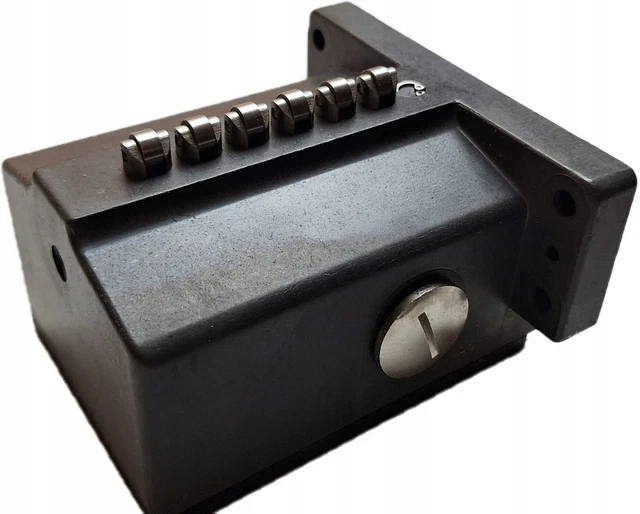

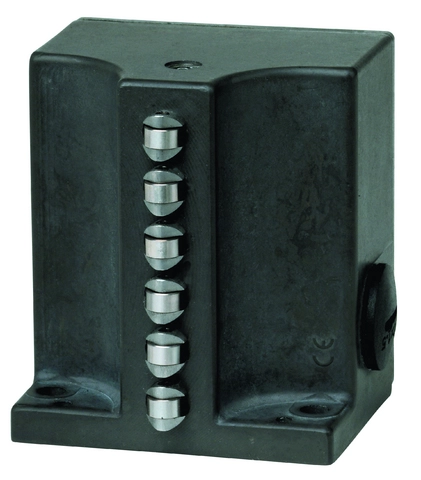

EUCHNER SN06R12-502-M
EUCHNER GSBF16D12-502
Travel Limit Switch, EUCHNER ,SN02D12-502-M
Mas Información? Euchner Argentina, distribuidor, Service, Cotizaciones, Contáctenos
>>>MAN_Operating-Instructions-Precision-Multiple…_EN_3943657_2032308
Additional information
| Weight | 0,360 kg |
|---|---|
| Dimensions | 6,6 × 8,2 × 3,6 cm |
