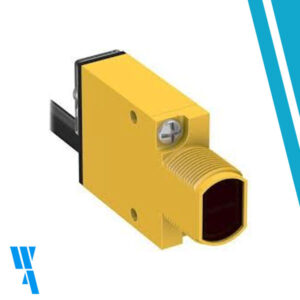

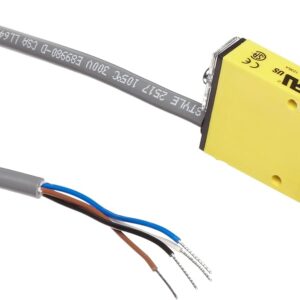

SM312D, BANNER, Sensor Fotoeléctrico, Difuso. Alcance: 380 mm; Entrada: 10-30 VCC. Salida: Bipolar: 1 NPN; 1 PNP. Cable de 2 m (6,5 pies).
Description
IP Rating IP67
NEMA / UL Type Rating NEMA 4X
Power DC
Sensing Beam Infrared LED
Cable Length (m) 2
Supply Voltage 10-30 V dc
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Input Output Discrete
Max Sensing Distance (mm) 380
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Operation Light/Dark Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 70
Output response time (ms) 1
Delay at Power-up (ms) 100
Repeatability (µs) 300
Number of Pins 4
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Feature: Encapsulated Yes
Feature: Audible No
EPLAN Original Sent Date 10/27/2022
EPLAN Status Published
