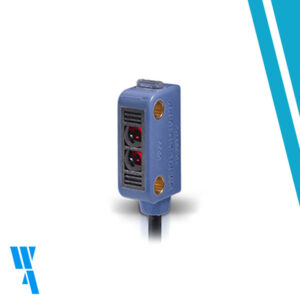

SM-PR-2-B00-PP, Datalogic, Sensor fotoeléctrico Submini, emisión de LED rojo, reflejo retro polarizado PNP, radial PNP NO/NC – 2 MT CABLE
Description
DESCRIPCIÓN GENERAL
Proximidad de enfoque fijo de 15 mm, 20 mm, 30 mm y 50 mm
1,5 ms retroflectantes y 1 m polarizados retroflectantes
2 m a través de modelos de haz
Salida NPN o PNP amplificada con salida NO-NC
TECHNICAL FEATURES
Detection properties
| Nominal sensing distance | 1m |
| Sensitivity adjustment | n/a |
Application
| Function Principle | Polarized retroreflective |
| Description | Subminiature slim case |
| Optic position | Radial 90° |
| Functions | Polarized retroreflective |
Outputs
| Output type | PNP NO+NC |
| Output Function | NO+NC |
| Switching frequency | 590Hz |
| Response time | 0,7ms |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 20mA |
| Load current | ≤50mA |
| Output voltage drop | ≤1,45V@Iload=50mA |
| LED indicators | Yellow (output status) |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (640nm) |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mechanical data

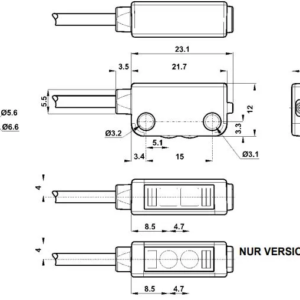

| Dimensions | 8x23x12 |
| Housing Material | Plastic PC / Glass |
| Connections | 2m cable |
| Active Head Material | PMMA |
| Storage temperature | – 35°C…+75°C |
| Material | |
| Diameter/Dimension | Cubic |
Test/Approvals
| Approvals | CE cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Generical Data
| Dimensions | 8x23x12 |
| Operating Temperature | – 20°C…+ 55°C |
| Mechanical Protection | IP67 |
Mas información?
Additional information
| Weight | 0,035 kg |
|---|---|
| Dimensions | 8,0 × 1,2 × 2,3 cm |
