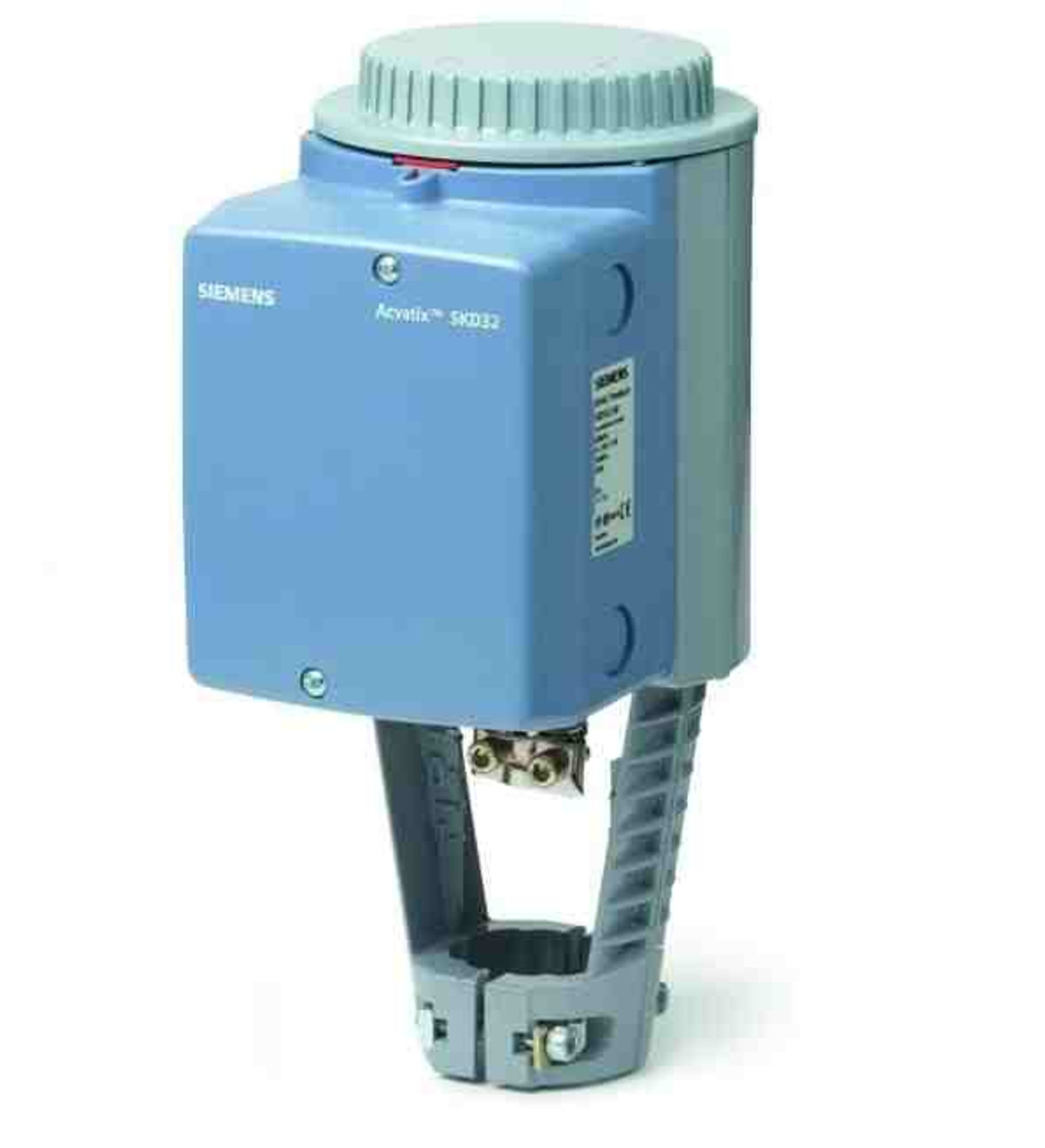

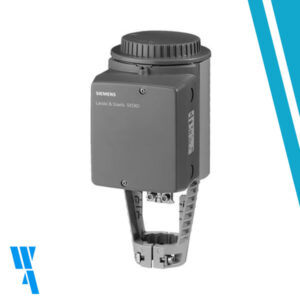

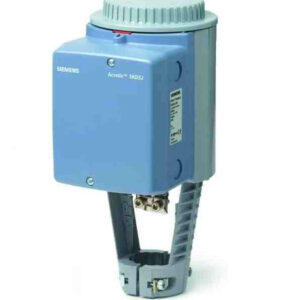

SKD32.51, Siemens, Actuador, Actuador electrohidráulico para válvulas, Siemens, SKD 32.51. 230V, control de 3 puntos, tiempo de ejecución 120s. Funciones a prueba de fallas.
Description
Actuador electro-hidráulico 1000N, con carrera de 20 mm, mando manual, protegido contra sobrecargas, carcasa de aluminio, control 3-puntos, 230 VCA, IP54, posicionamiento 120s abrir 8s cerrar (muelle), temperatura del medio -25…150 °C
| Article Number (Market Facing Number) |
SKD32.51 | BPZ:SKD32.51 |
| Product Description |
SKD32.51 – Electrohydraulic actuator, 1000 N, stroke 20 mm, IP54, AC 230 V, 3-position, 120 s, spring return 8 s |
| Product family |
Ordering Data Overview |
| Product Lifecycle (PLM) |
PM300:Active Product |
| Region Specific PriceGroup / Headquarter Price Group |
A10 / A10 |
|
|
|
|
| Metal Factor |
None |
| Export Control Regulations |
AL : N / ECCN : EAR99 |
| Estimated dispatch time (Working Days) |
1 Day/Days |
| Net Weight (kg) |
4,056 Kg |
| Packaging Dimension |
21,00 x 34,60 x 17,70 |
| Package size unit of measure |
CMT |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| EAN |
7612914005281 |
| UPC |
Not available |
| Commodity Code |
84122180 |
| LKZ_FDB/ CatalogID |
BT_Catalog |
| Product Group |
QBC1 |
| Group Code |
H5CC |
| Country of origin |
Germany |
| Compliance with the substance restrictions according to RoHS directive |
Since: 28.02.2019 |
| Product class |
Not available |
| WEEE (2012/19/EU) Take-Back Obligation |
Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
| SCIP number |
Not available |
|
Not available |
|
Mas Información?
>>>ElectrohydraulicactuatorsSKD..SDK
Additional information
| Weight |
4,056 kg |
| Dimensions |
21,0 × 34,6 × 17,70 cm |
