Refrigeradores Blue y de pared de alta eficiencia energética con potencias de 300 W a 4000 W y con evaporador de condensados ​​eléctrico integrado (a partir de 1000 W). Disponibles en formatos especiales «horizontal» y «plano».

Product description
Article no.: SK 3329500
Design: wall-mounted
Product description: Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W).
Material: Sheet steel
Colour: RAL 7035
Supply includes: Condenser with hydrophobic RiNano coating
Fully wired ready for connection (plug-in terminal strip)
Drilling template: Assembly parts
Integral electric condensate evaporation
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 2.55 kW
Cooling output L35 L35/60 Hz: 2.6 kW
Cooling output L35 L50/50 Hz: 1.8 kW
Cooling output L35 L50/60 Hz: 1.8 kW
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Rated current max.: At 50 Hz: 7.9 A; At 60 Hz: 10.1 A
Start-up current max.: At 50 Hz: 25 A, At 60 Hz: 22 A
Air throughput (unimpeded air flow)
External circuit: 1,230 m³/h
Internal circuit: 1,230 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2.11
Refrigeration factor L35 L35 (EER) 60 Hz: 1.7
Design: wall-mounted
Dimensions
Width: 400 mm
Height: 1,580 mm
Depth: 295 mm
Protection category to IEC 60 529
External circuit IP 34
Internal circuit IP 54
Protection category NEMA
UL Type 12
Refrigerant/cooling medium
Refrigerant: R-513A
Quantity: 1.15 kg
Global Warming Potential (GWP): 631
CO₂ equivalent (CO₂e): 0.73 t
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range: 10 °C…55 °C
Storage temperature range: -40 °C…70 °C
Setting range: 20 °C…55 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 1.21 kW
Power consumption L35 L35/60 Hz: 1.53 kW
Power consumption L35 L50/50 Hz: 1.41 kW
Power consumption L35 L50/60 Hz: 1.8 kW
Permissible operating pressure (p. max.): 28 bar
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Packs of: 1 pc(s).
Net weight. 69.35 kg
Gross weight: 73 kg
Product description

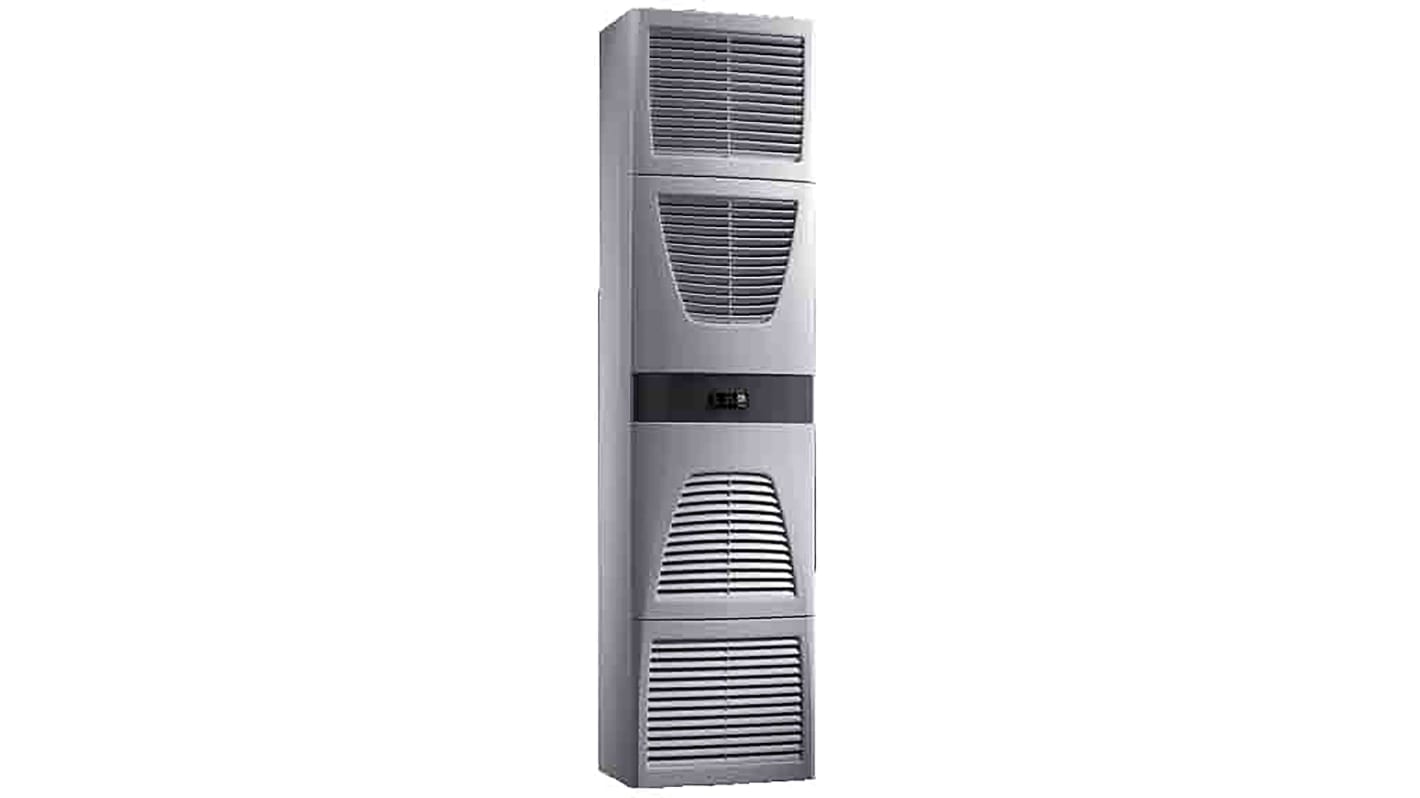

SK cooling unit Blue e, wall-mounted, 2.55 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 400 x 1580 x 295 mm
