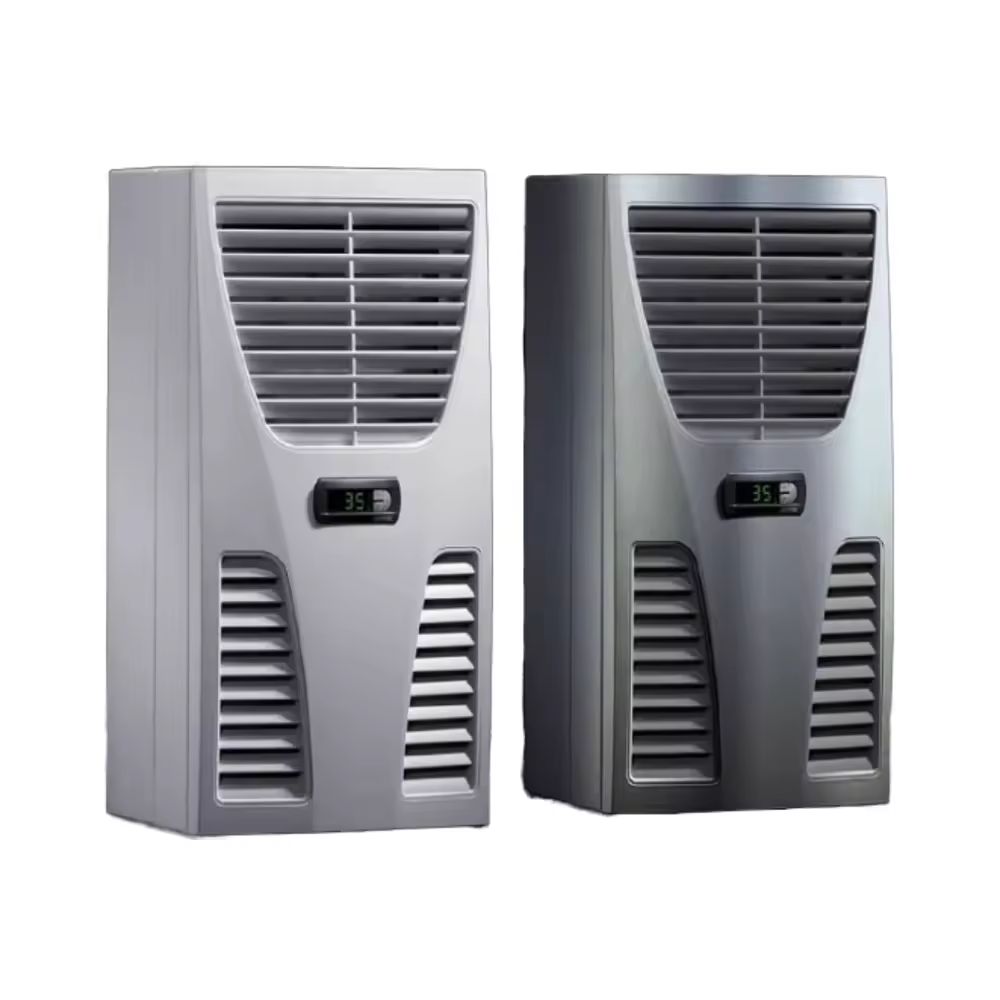

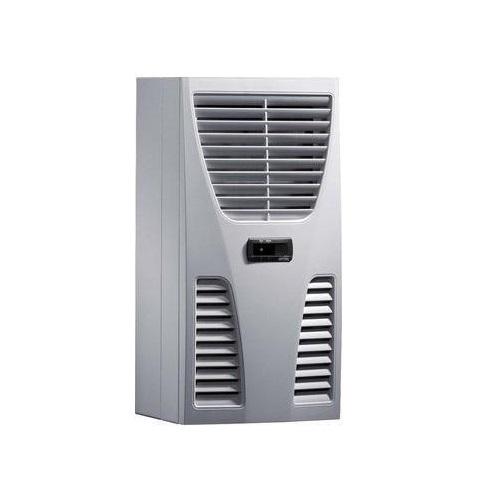

SK 3303.500, Rittal, Refrigerador de pared TopTherm Blue e 0,3 – 4 kW
Description
Refrigeradores murales Blue e energéticamente eficientes en las categorías de potencia de 300 W a 4000 W y con evaporador de condensados eléctrico integrado (a partir de 1000 W). Disponible en los formatos especiales «horizontal» y «plano»
Article no.: SK 3303500
Design: wall-mounted
Product description: Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W).
Benefits: May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
MaterialSheet steel
Colour: RAL 7035
Supply includes: Condenser with hydrophobic RiNano coating
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Total cooling output to DIN EN 14511Cooling output L35 L35/50 Hz: 0.52 kW
Cooling output L35 L35/60 Hz: 0.6 kW
Cooling output L35 L50/50 Hz: 0.28 kW
Cooling output L35 L50/60 Hz: 0.34 kW
Cooling output L35 L35/60 Hz: 0.6 kW
Cooling output L35 L50/50 Hz: 0.28 kW
Cooling output L35 L50/60 Hz: 0.34 kW
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Rated current max.At 50 Hz: 2.6 A
At 60 Hz: 2.6 A
At 60 Hz: 2.6 A
Start-up current max.At 50 Hz: 5.1 A
At 60 Hz: 6.4 A
At 60 Hz: 6.4 A
Air throughput (unimpeded air flow)External circuit: 315 m³/h
Internal circuit: 265 m³/h
Internal circuit: 265 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.33
Refrigeration factor L35 L35 (EER) 60 Hz: 1.46
Refrigeration factor L35 L35 (EER) 60 Hz: 1.46
Designwall-mounted
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 210 mm
Height: 550 mm
Depth: 210 mm
Protection category to IEC 60 529
External circuit IP 34Internal circuit IP 54
Protection category NEMAUL Type 12
Refrigerant/cooling medium: Refrigerant: R-513A
Quantity: 0.17 kg
Global Warming Potential (GWP): 631
CO₂ equivalent (CO₂e): 0.11 t
Quantity: 0.17 kg
Global Warming Potential (GWP): 631
CO₂ equivalent (CO₂e): 0.11 t
Temperature controle-Comfort controller (factory setting +35 °C)
Solicite cotización, Service y Repuestos, Rittal Argentina.
Additional information
| Weight | 20,0 kg |
|---|---|
| Dimensions | 21,0 × 28,0 × 55,0 cm |
