Article no.: SK 3238700

Design: wall-mounted

Product description: Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.

Benefits: Maximum air throughput via pleated filter included in the delivered stateEasy filter changes, thanks to a new opening mechanism on the louvred grilleFaster installation on the enclosure with optimised detent hooks

Diagonal fan technology achieves more even and constant ventilation of the enclosure, thanks to improved pressure stabilityTool-free assembly

Material: Plastic

Colour: RAL 7035

Supply includes: Complete unit ready to install, including pleated filter

Fan: Axial, shaded pole motor

Air throughput, unimpeded airflow (with chopped-fibre filter)At 50 Hz: 53 m³/h
At 60 Hz: 64 m³/h

Air throughput, unimpeded airflow (with pleated filter)At 50 Hz: 63 m³/h
At 60 Hz: 72 m³/h

Air throughput with matching outlet filter including chopped-fibre filterAt 50 Hz: 40 m³/h
At 60 Hz: 46 m³/h

Air throughput with matching outlet filter including pleated filterAt 50 Hz: 49 m³/h
At 60 Hz: 55 m³/h

Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz

Power consumption PelAt 50 Hz: 14.7 W
At 60 Hz: 16.5 W

Rated current max.At 50 Hz: 0.1 A
At 60 Hz: 0.12 A

Dimensions: Width: 148.5 mm
Height: 148.5 mm
Depth: 82.5 mm

Installation depth: 64 mm

Mounting cut-out: Cut-out width: 124 mm
Cut-out height: 124 mm

IP protection category to IEC 60 529IP 54 with chopped-fibre filter/pleated filterIP 55 with pleated filter and absorber matIP 56 with chopped-fibre filter/pleated filter and hose-proof hood

Protection category NEMA: Type 12 with chopped-fibre filter/pleated filterType 3, 3R, 4, 4X with chopped-fibre filter/pleated filter and hose-proof hood

Pre-fuse: Miniature circuit-breaker/fuse: 2 A

Note:

With the filter fan 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other filter fans, a screwless spring terminal is used

Operating temperature range: -15 °C…55 °C

Storage temperature range-30 °C…70 °C

Noise level: At 50 Hz: 52 dB(A)
At 60 Hz: 54 dB(A)

Packs of1 pc(s).

Net weight: 0.66 kg

Gross weight: 0.86 kg

Customs tariff number: 84145915

EAN4028177997615

ETIM 9EC000320

ETIM 8EC000320

ECLASS 8.027180716

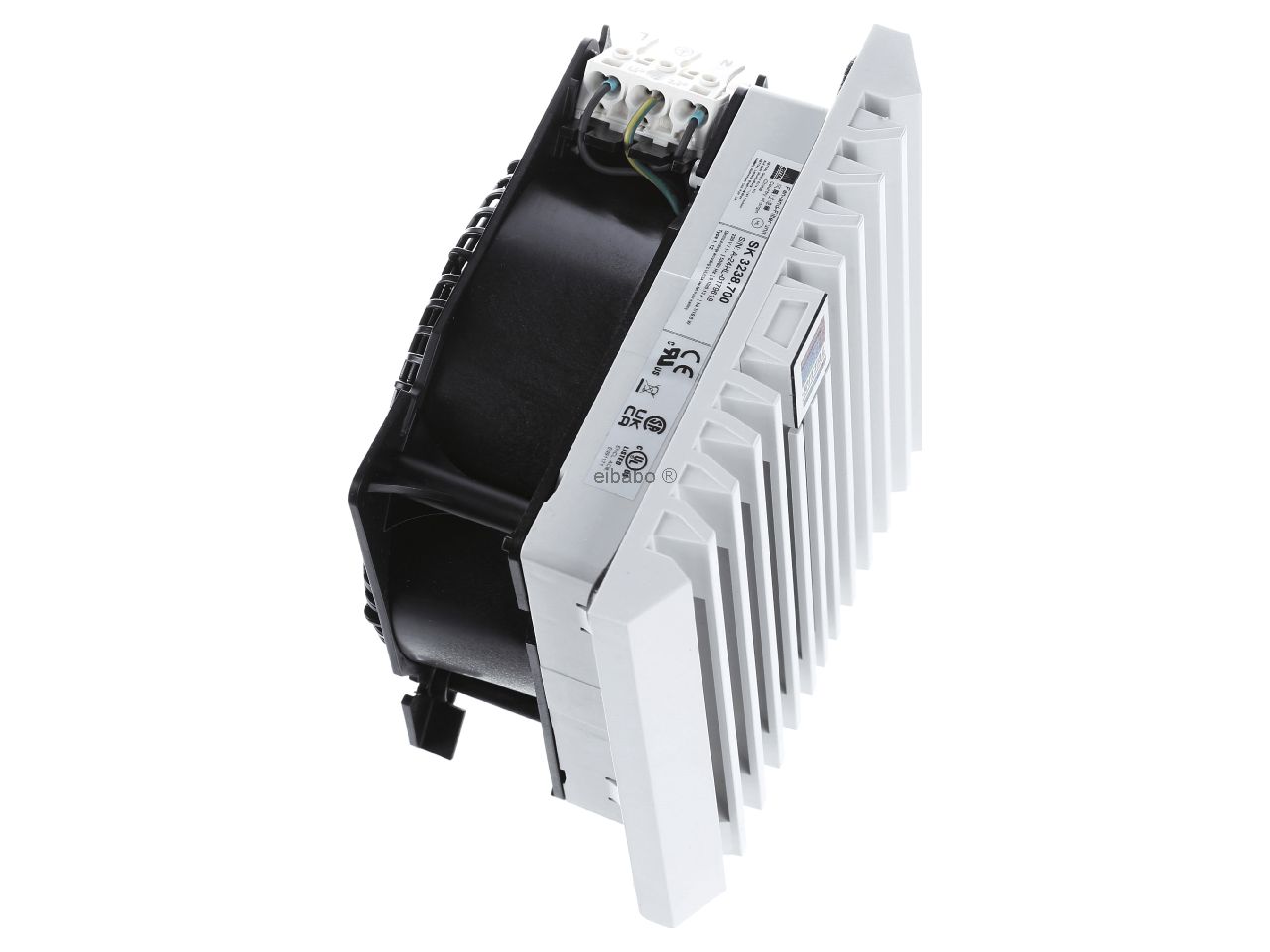

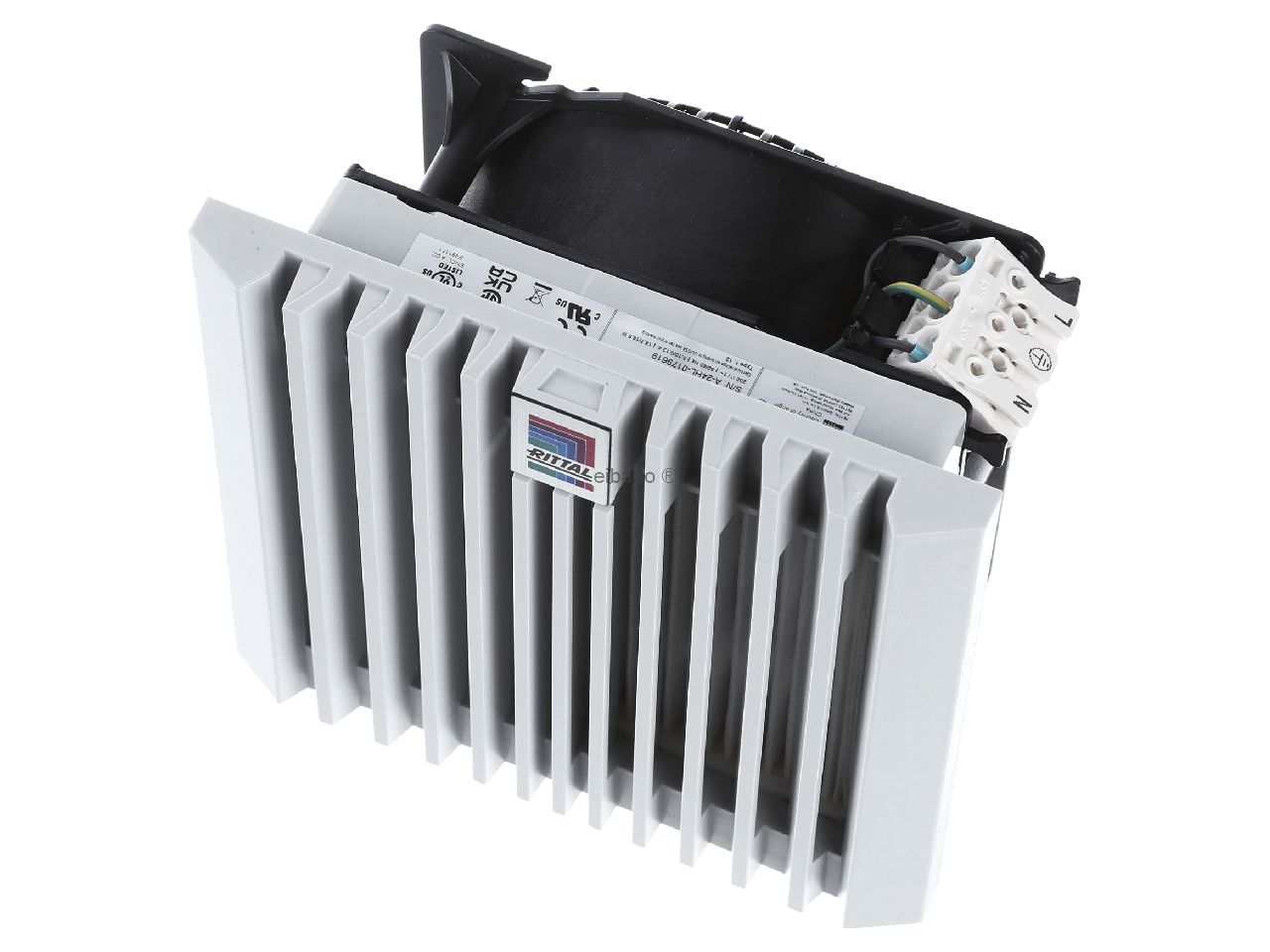

Product description: SK Blue e+ filter fan, 63/72 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD 148.5 x 148.5 x 82.5 mm, RAL 7035
