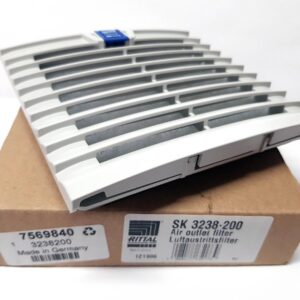

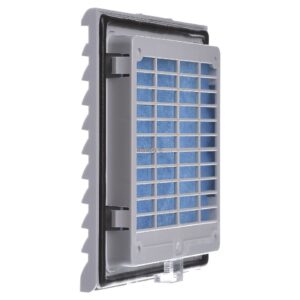

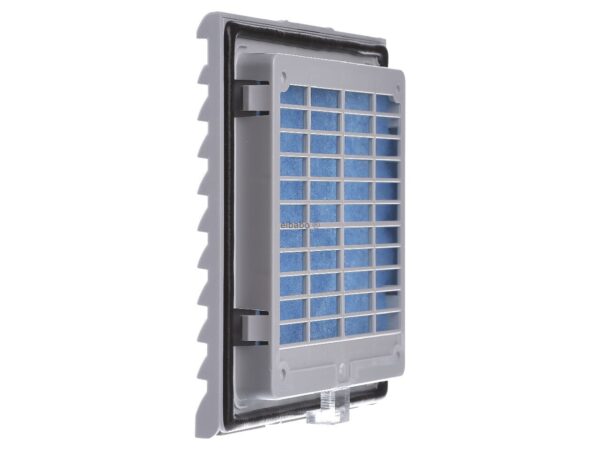

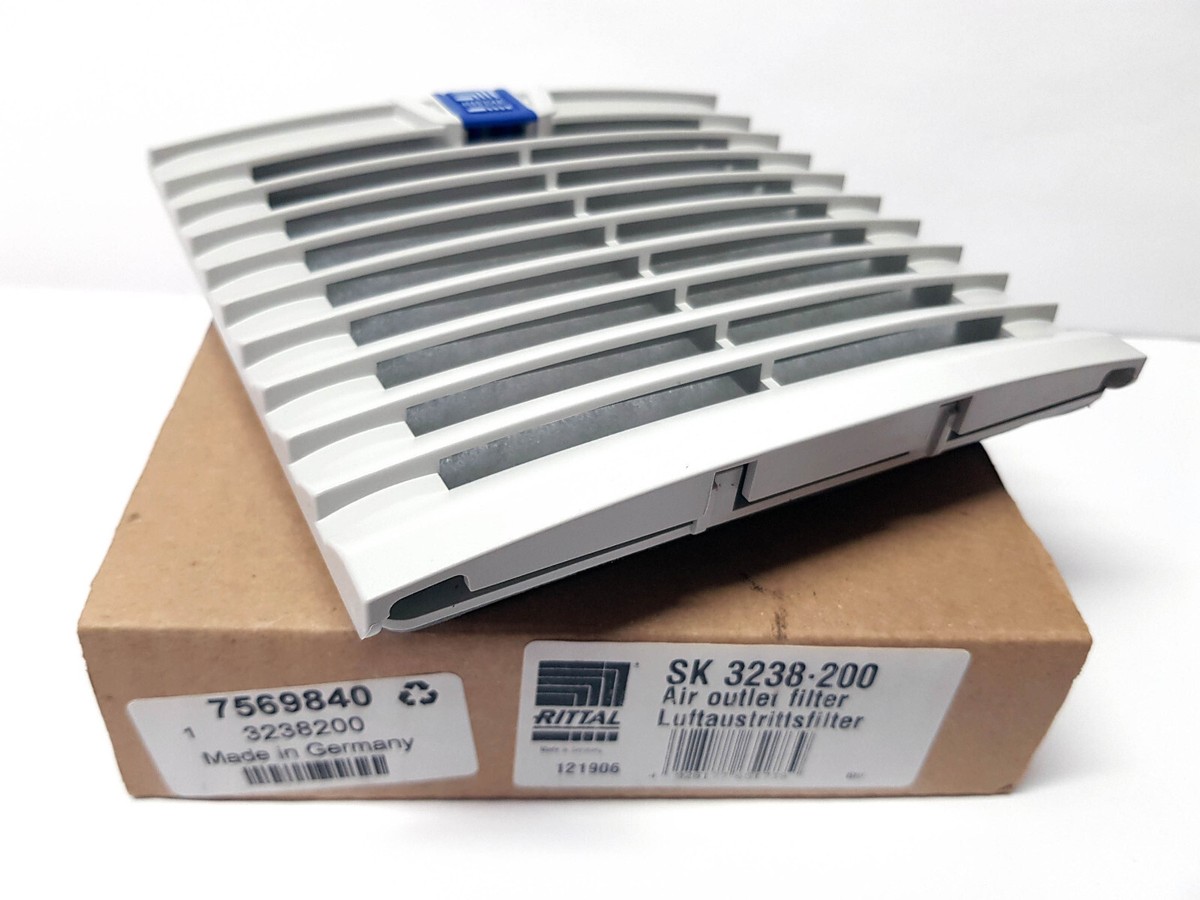

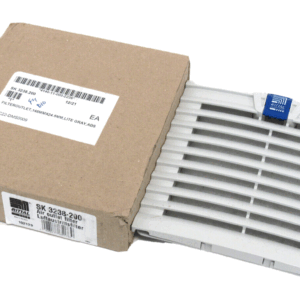

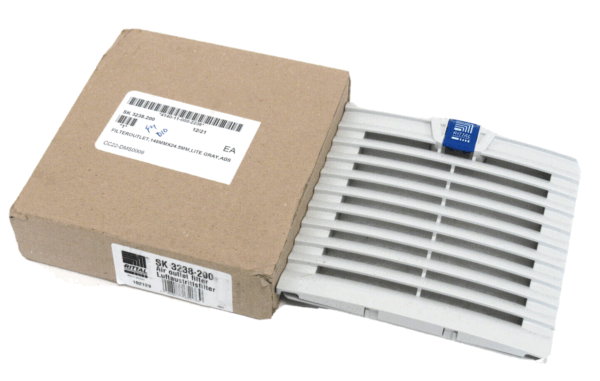

SK 3238.200, RITTAL, SK FILTRO DE SALIDA PARA, SK3238.1XX, RAL7035, Filtro de salida, Estera filtrante, Anchura:148,5 mm Altura: 148,5 mm x 24mm, para tableros.
Description
Product description:
Article number: SK 3238.200
Product description: For ventilation by convection, an outlet filter can be installed in the upper and lower sections of the enclosure.
Material: ABS
Colour: RAL 7035
Supply includes: Outlet filter
Chopped-fibre filter mat
Chopped-fibre filter mat
Mounting cut-out: Cut-out width: 124 mm
Cut-out height: 124 mm
Cut-out height: 124 mm
To fit Model No.: SK 3238.1xx
Dimensions: Width: 148.5 mm
Height: 148.5 mm
Depth: 24 mm
Height: 148.5 mm
Depth: 24 mm
Protection category NEMAType 1 with pleated filter, Type 12 with chopped-fibre filter,
Type 3Type 3R, Type 4, Type 4X with chopped-fibre filter/pleated filter and hose-proof hood
IP protection category to IEC 60 529IP 54 with chopped-fibre filter/pleated filterIP 55 with pleated filter and absorber mat
IP 56 with chopped-fibre filter/pleated filter and hose-proof hood
IP 56 with chopped-fibre filter/pleated filter and hose-proof hood
Packs of 1 pc(s).
Net weight: 0.17 kg
Gross weight: 0.18 kg
Customs tariff number: 39269097
EAN 4028177651739
ETIM 9EC002513
ETIM 8EC002513
ECLASS 8.027180706
Product description: SK outlet filter, Standard, WHD: 148.5 x 148.5 x 24 mm
Rittal argentina, Proveedor.
Mas Información?
Additional information
| Weight | 0,180 kg |
|---|---|
| Dimensions | 14,8 × 2,4 × 14,8 cm |
