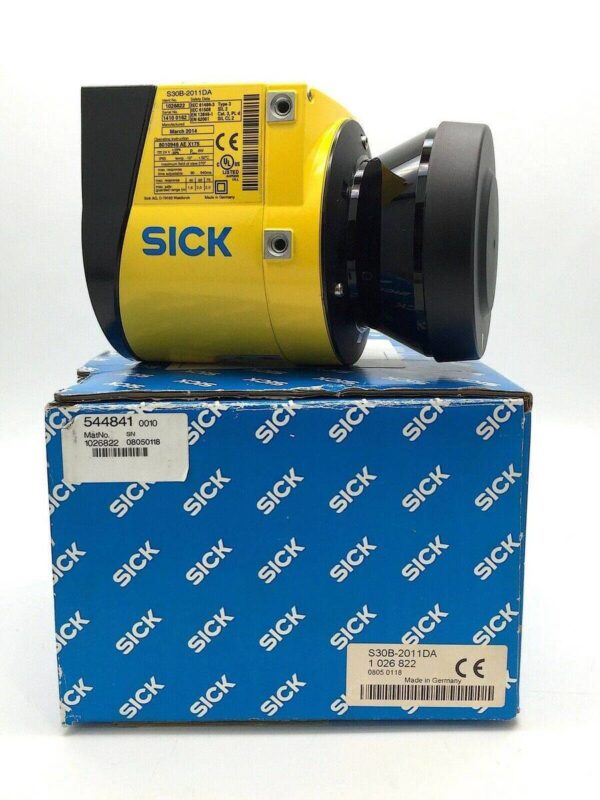

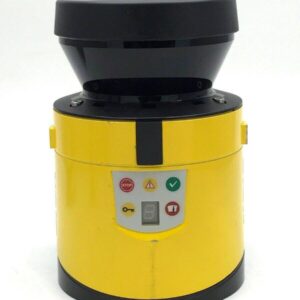

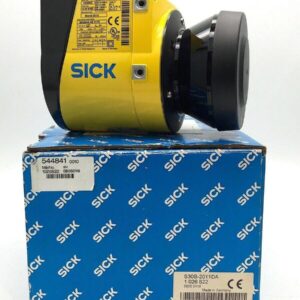

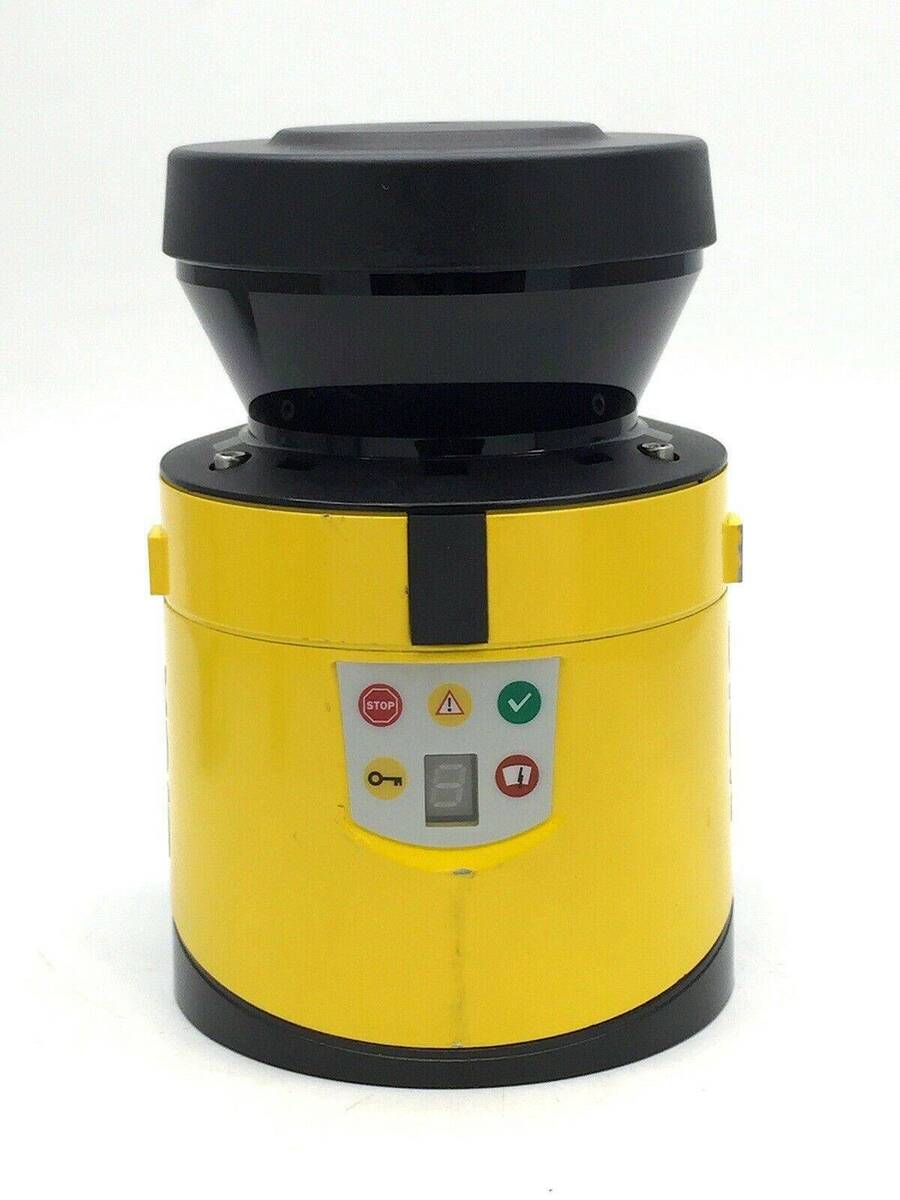

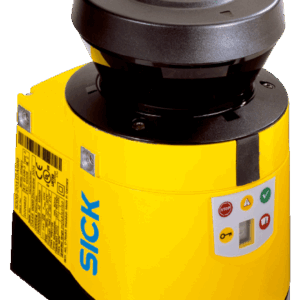

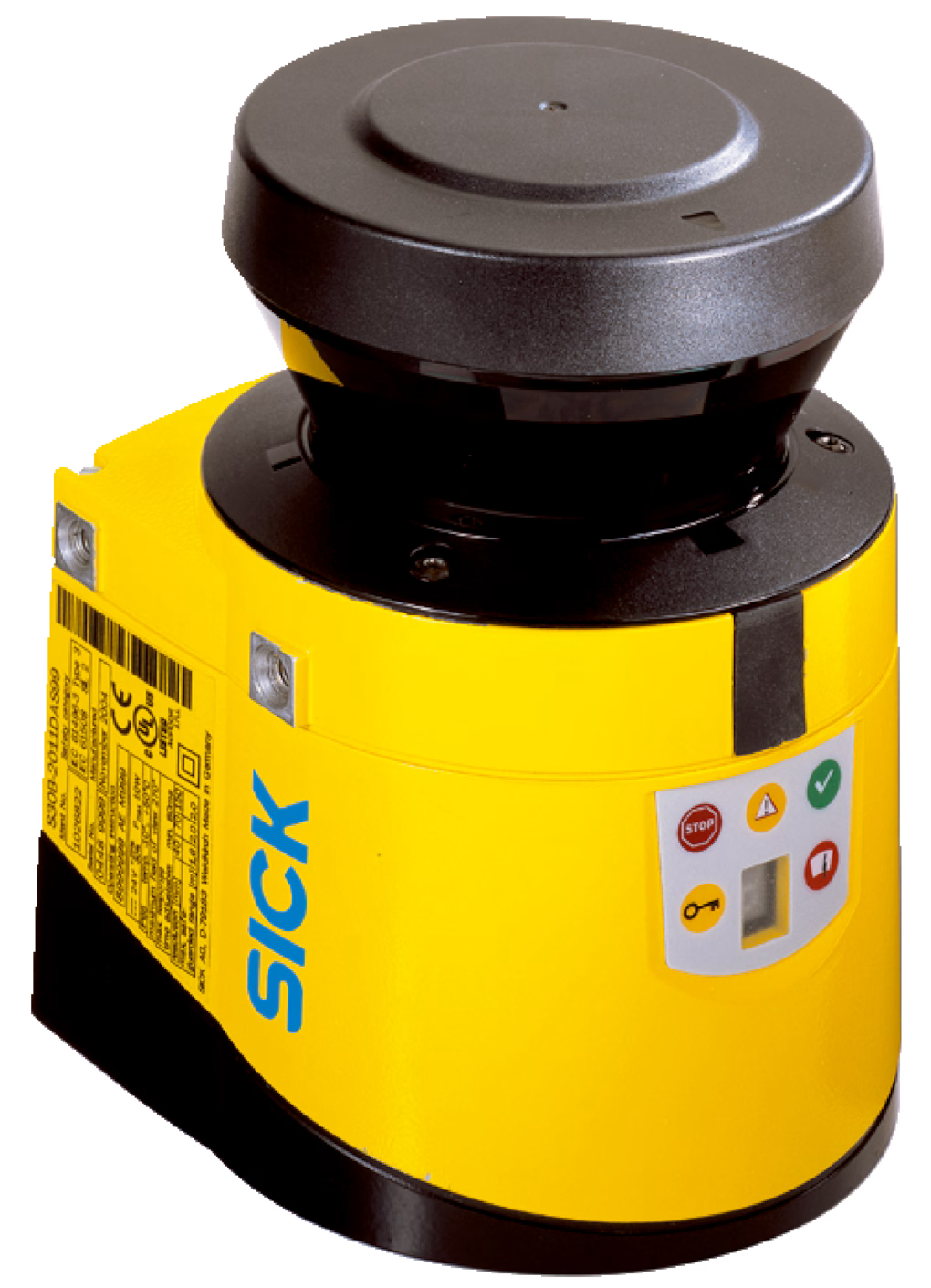

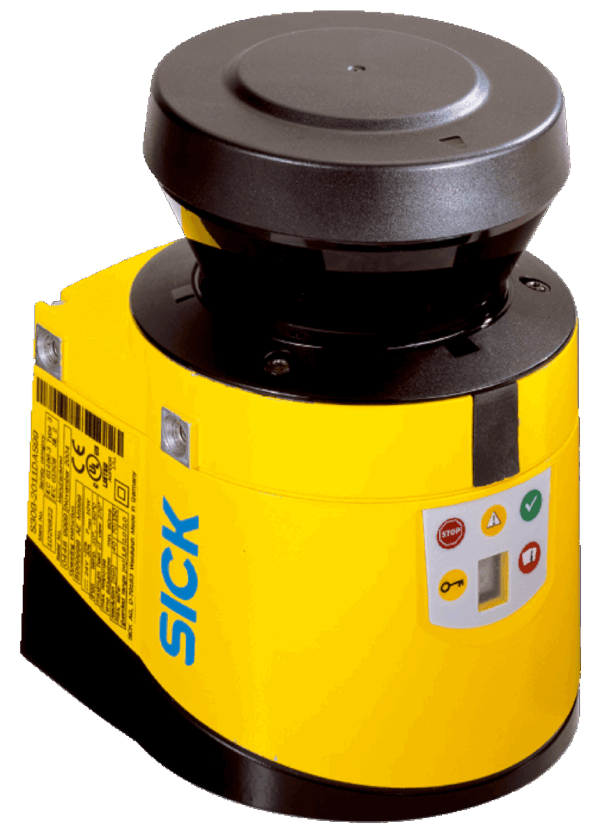

S30B-2011DA, SICK, Escáner láser, Alcance del campo de protección: 2 m, Alcance del campo de advertencia: 8 m, Campo
Description
| Sub product family | S300 Professional |
| Model | Sensor without system plug |
| Application | Indoor |
| Protective field range | 2 m |
| Warning field range | 8 m (at 15 % reflectivity) |
| Distance measuring range | 30 m |
| Type of field set | Triple field sets |
| Number of field sets | 8 |
| Number of fields | 24 |
| Number of monitoring cases | 32 1) |
| Scanning angle | 270° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm |
| Angular resolution | 0.5° |
| Response time | 80 ms 2) |
| Protective field supplement | 100 mm |
| Number of multiple samplings | 2 … 16, configurable |
| Delay of automatic reset | 2 s … 60 s, configurable |
1) In combination with an additional static input via EFI or using the dynamic inputs on the device. Otherwise eight.
2) Depending on basic response time and multiple sampling.
Mas Información, Reparaciones, RECAMBIOS Y ACCESORIOS? CONTACTENOS.
Additional information
| Weight | 1,2 kg |
|---|
