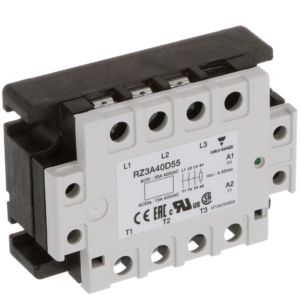

RZ3A40D55, Carlo Gavazzi., 55 A máx, SSR RELAY 3PST-NO 55A 24-440V, montaje en panel
Three Phase Solid State Relays CARLO GAVAZZI
Description
|
Main features |
- 3-phase Solid State Relay
- Zero switching
- Rated operational current: 3 x 25, 55 or 75 A
- Rated operational voltage: Up to 690 VAC
- Control voltage, 4-32 VDC or 24-275 VAC
- Integral snubber network
- Built-in varistor
- Over-temperature protection option with alarm output
- IP 10 back-of-hand protection
- LED indication of control input and over-temperaturealarm status
400 VACrms
480 VACrms
600 VACrms
690 VACrms
Notes
4-32 VDC 24-275 VAC/ 24-50 VDC 4-32 VDC 24-275 VAC/ 24-50 VDC 4-32 VDC 24-275 VAC/ 24-50 VDC 4-32 VDC 24-275 VAC/ 24-50 VDC
RZ3A40D25 RZ3A40A25 RZ3A48D25 RZ3A48A25 RZ3A60D25 RZ3A60A25 –
RZ3A40D55 RZ3A40A55 RZ3A48D55 RZ3A48A55 RZ3A60D55 RZ3A60A55 –
RZ3A40D75 RZ3A40A75 RZ3A48D75 RZ3A48A75 RZ3A60D75 RZ3A60A75 RZ3A69D75 RZ3A69A75
Additional information
| Weight | 0,4 kg |
|---|
