Especificaciones

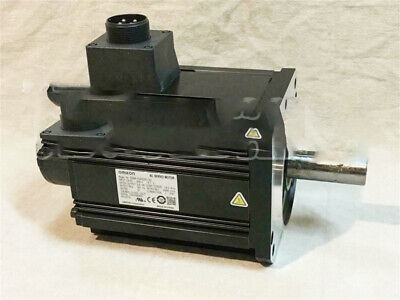

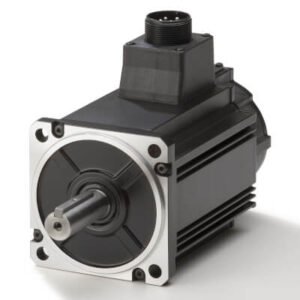

Accurax G5 Motor 3KW, 400V, 2000RPM, 14.3Nm, ENC ABS
Servo control method |
Analog, EtherCAT, MECHATROLINK II, Pulse train |
Drive supply voltage |
400 V three phase |
Rated output |
3 kW |
Rated speed |
2000 r/min |
Rated torque |
14.3 Nm |
Peak torque |
43 Nm |
Encoder type |
Absolute with battery |
Encoder resolution |
17 Bit |
Motor with brake |
|
Motor with oil seal |
|
Flange size square (LC) |
130 mm |
Shaft diameter |
24 mm |
Shaft with key |
|
Shaft with tap |
|
Product Weight (unpacked) |
11000 g |
Mas Información?
>>>R88M-K3K020C-S2
