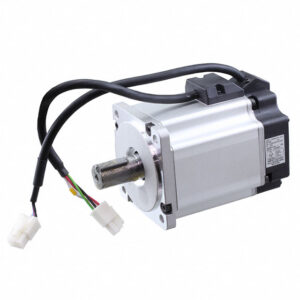

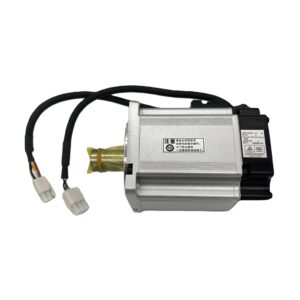

R88M-G75030H-S2, Omron, Servo control method, Analog, MECHATROLINK II, Pulse train. Drive supply voltage, 230 V single phase. Rated output, 0.75 kW. Rated speed, 3000 r/min.
Servo motor, 750 W, 3k rpm, 2.4 Nm, 230 VAC, 4 A, No brake, G Series. Datasheet Download Datasheet. 3D Model / PCB Symbol. In Stock:.
Mas información Acerca de este Producto?
Una amplia gama de servomotores Omron, Serie G, R88M, compactos para satisfacer todas las necesidades de aplicación
- Par máximo del 300% del par nominal durante3 segundos o más, en función del modelo
- Servomotores compatibles con servodrivesSmartStep2, serie G y Accurax G5
- Hay servomotores cilíndricos y planos disponibles
- Precisión del encoder de 10.000 pasos/rev como estándar y encoder INC/ABS de 17 bits opcional
- Disponibilidaddemodeloscongradodeprotección IP65 como estándar y con junta de aceite del eje
- Opción de motores con frenoValores nominales• 230 Vc.a. monofásico 50 W a 1,5 kW (par nominal de 0,16 a 8,62 Nm)
Specifications
| Servo control method | Analog, MECHATROLINK II, Pulse train |
| Drive supply voltage | 230 V single phase |
| Rated output | 0.75 kW |
| Rated speed | 3000 r/min |
| Rated torque | 2.4 Nm |
| Peak torque | 7.05 Nm |
| Encoder type | Incremental |
| Encoder resolution | 13 Bit |
| Motor with brake | |
| Motor with oil seal | |
| Flange size square (LC) | 80 mm |
| Shaft diameter | 19 mm |
| Shaft with key | |
| Shaft with tap | |
| Product Weight (unpacked) | 2300 g |
Servomotores cilíndricos de 3.000/2.000/1.000 rpm (230 V, 50 a 1,5 kW)
|
Símbolo |
Especificaciones |
Servomotor |
Servodrivescompatibles B |
||||||
|
Encoder y diseño |
Velocidad |
Diseño |
Par no- minal |
Capaci- dad |
Modelo con conec- tor estándar |
Modelo con conector circular |
Servodrive |
Serie G |
|
|
A (50 a 750 W)
|
Encoder incremental (10.000 impulsos) Eje recto con cha- veta y roscado |
3.000 min–1 |
Sin freno |
0,16 Nm |
50 W |
R88M-G05030H-S2 |
R88M-G05030H-S2-D |
R7D-BP01H |
R88D-G@01H@ |
|
0,32 Nm |
100 W |
R88M-G10030H-S2 |
R88M-G10030H-S2-D |
R7D-BP01H |
R88D-G@01H@ |
||||
|
0,64 Nm |
200 W |
R88M-G20030H-S2 |
R88M-G20030H-S2-D |
R7D-BP02HH |
R88D-G@02H@ |
||||
|
1,3 Nm |
400 W |
R88M-G40030H-S2 |
R88M-G40030H-S2-D |
R7D-BP04H |
R88D-G@04H@ |
||||
|
2,4 m |
750 W |
R88M-G75030H-S2 |
R88M-G75030H-S2-D |
R88D-GP08H |
R88D-G@08H@ |
||||
|
Con freno |
0,16 Nm |
50 W |
R88M-G05030H-BS2 |
R88M-G05030H-BS2-D |
R7D-BP01H |
R88D-G@01H@ |
|||
|
0,32 Nm |
100 W |
R88M-G10030H-BS2 |
R88M-G10030H-BS2-D |
R7D-BP01H |
R88D-G@01H@ |
||||
|
0,64 Nm |
200 W |
R88M-G20030H-BS2 |
R88M-G20030H-BS2-D |
R7D-BP02HH |
R88D-G@02H@ |
||||
|
1,3 Nm |
400 W |
R88M-G40030H-BS2 |
R88M-G40030H-BS2-D |
R7D-BP04H |
R88D-G@04H@ |
||||
|
2,4 m |
750 W |
R88M-G75030H-BS2 |
R88M-G75030H-BS2-D |
R88D-GP08H |
R88D-G@08H@ |
||||
| Weight | 2,300 kg |
|---|
