R58ECRGB1Q8, R58 EXPERT, Banner Engineering Corp, Registro sensor de marca. Aporte; 10-30 V CC. Salida: Bipolar; 1 PNP; 1 PNP. Haz de detección perpendicular. Cable de 2m

Description

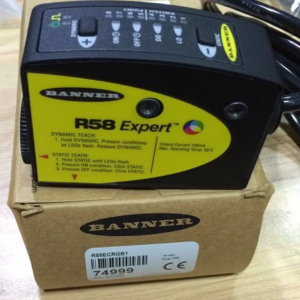

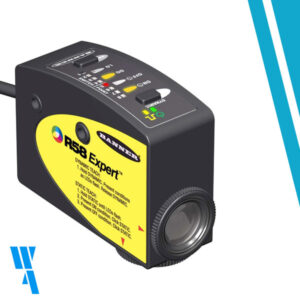

R58 EXPERT Register Mark Sensor: R58ECRGB1Q8

Input: 10-30 V dc

Output: Bipolar; 1 NPN; 1 PNP

Parallel Sensing Beam

5-pin M12 Integral QD

Part Number: 81509

Ultra-fast 10 kHZ switching frequency
Sensor automatically selects red, green, or blue LED during TEACH to optimize application contrast
Outstanding color contrast sensitivity; detects 16 levels of gray scale
Smart gain-control algorithm to maximize performance in low-contrast or high-gloss applications
Easy to set, automatic Expert-style TEACH options include Static and Dynamic programming plusmanual adjustment for fine tuning
Easy-to-read 8-segment light bar indicator for TEACH and signal strength readout, plus indicatorsfor continuous readout of output status and setup
Fixed-convergent sensing at 10 mm ±3 mm (0.39 in ±0.12 in); rectangular sensing image measure1.2 mm x 3.8 mm (0.05 in x 0.15 in) at 10 mm (0.39 in) from the lens
Models available with either parallel or perpendicular sensing image
Rugged zinc alloy die-cast housing with high-quality acrylic lens suitable for food processingapplications; rated IEC IP67, NEMA 6
Easy selection of Light/Dark Operate (LO/DO), 30 ms pulse stretcher (OFF-delay), and 30 ms ON-delay, using the push buttons or a remote input wire

R58ECRGB1Q8, R58ECRGB2Q, R58ECRGB1Q, R58ECRGB2, R58ECRGB1 W/30, R58ECRGB1, R58BNCRGB1, R58BPCRGB1Q8, R58BPCRGB1, R58ACG2DQ8, R58ACR1Q8, R58ACR1DQ8, R58ACG1, R58ACG1DQ8, R58ECRGB2Q8, R58ECRGB2 W/30, R58BNCRGB1Q, R58BNCRGB2, R58ACG1Q8, R58ACR1D, R58ACR1, R58ACG1Q, R58BPCRGB2Q, R58ACG1DQ, R58ACR2Q, R58BNCRGB2Q, R58BPCRGB1Q

Mas informacion?

Additional information

Weight	0,255 kg
