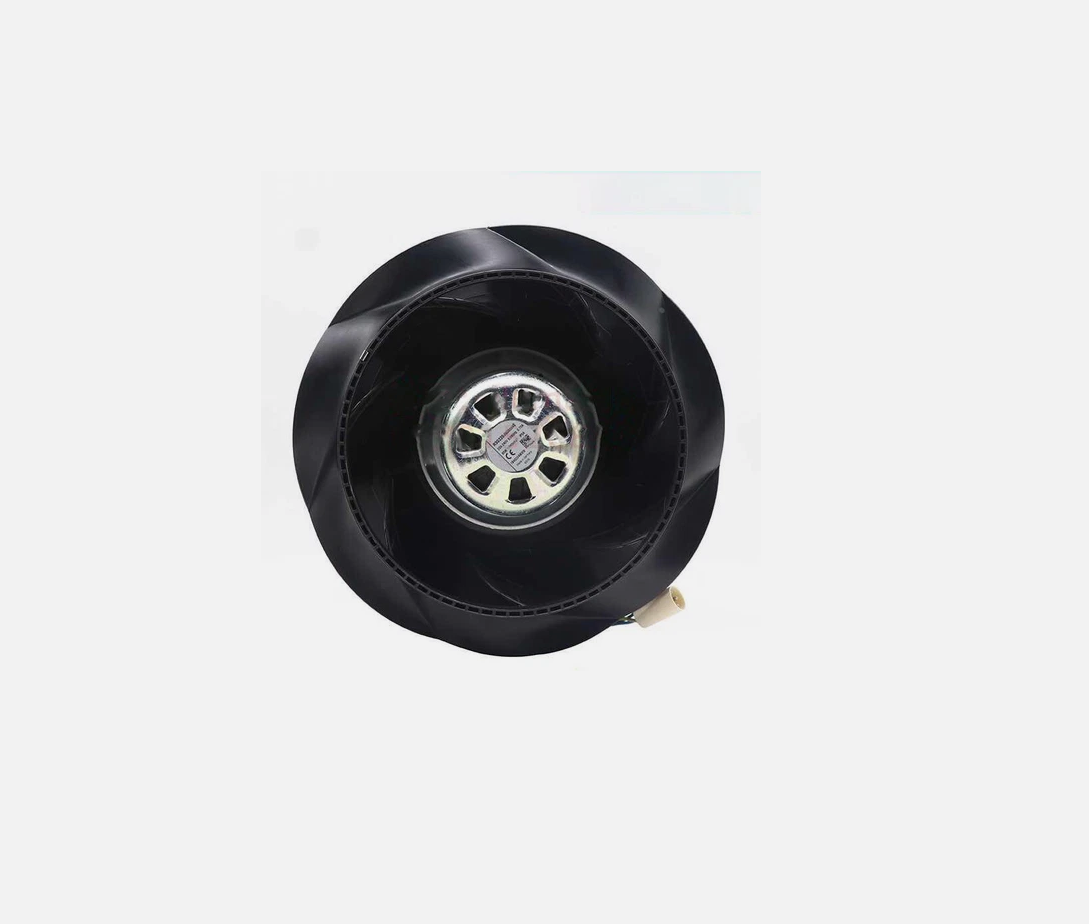

Type: EC Centrifugal Fan (RadiCal, backward-curved, single-intake) Fan Size: 220 mm
Weight: 0.97 kg
Bearing Type: Ball bearing

Phase: 1~
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 – 240 VAC Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)

Max. Current Draw: 0.7 A
Max. Power Consumption: 85 W
Rated Speed: 2580 RPM
Number of Blades: 7
Technical Features: Motor current limitation; Soft start; Thermal overload protection for electronics/motor
Touch Current (IEC 60990): <= 3.5 mA
Electrical Hookup: With plug
Motor Protection: Electronic motor protection
Insulation Class: «B»
Degree of Protection: IP54
Protection Class: I (with customer connection of protective earth)
Humidity Class: H1
Impeller Material: PA plastic
Rotor Surface: Unpainted
Direction of Rotation: Clockwise, viewed toward rotor
Installation Position: Any
Condensation Drainage Holes: None, open rotor
Mode: S1
Strength Class of Screws: 8.8
Ambient Temperature (Max.): 60 °C (Transport/Storage: +80 °C)
Min. Operating Temperature: -25 °C (Transport/Storage: -40 °C)
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC; CSA C22.2 No. 77 + CAN/CSA-E60730-1; UL 1004-7 + 60730
