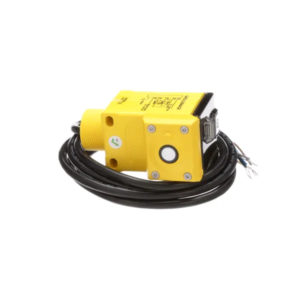

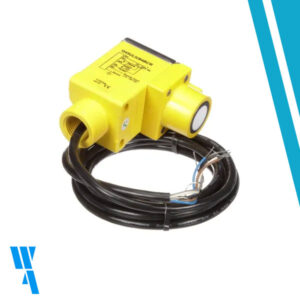

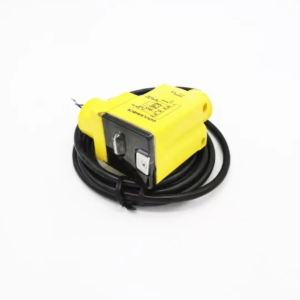

Analog Q45U Series: Proximity Mode
Range: 250 mm – 3 m; Input: 15-24 V dc
Output: Selectable 0-10 V dc or 4-20 mA sourcing
2 m (6.5 ft) Cable
PowerDC
Sensing BeamUltrasonic
Cable Length (m)2
NEMA / UL Type RatingNEMA 4X
IP RatingIP67
Sensing Mode (General)Proximity
Sensing Mode (Detailed)Time of Flight
Housing StyleRectangular
Device TypeSensor
Primary Housing MaterialPBT
Input OutputAnalog
Analog Output Configuration0-10 V dc or 4-20 mA
ConnectionCable
Max Sensing Distance (mm)3000
Minimum Sensing Distance (mm)250
Power Supply15-24 V dc
AdjustmentsTeach Button; DIP Switches
Number of Pins5
Max Operating Temperature (°C)70
Min Operating Temperature (°C)-25
Minimum Response Time (ms)80
Ultrasonic Frequency (kHz)128
Feature: Remote TeachYes
Feature: Clear Object DetectionYes
Application: UltrasonicYes
>
