Q456EQ5, Banner Engineering, Serie Q45, Sensores fotoeléctricos, Emisor; Alcance: 60 m; Entrada: 10-30 V CC; Salida: No aplicable; QD integral M12 de 4 pines

Description

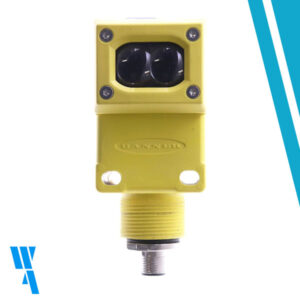

Q45 Series: Emitter

Range: 60 m; Input: 10-30 V dc

Output: Not Applicable

4-pin M12 Integral QD

IP Rating: IP67

Sensing: Beam Infrared LED

NEMA / UL Type Rating NEMA 4X

Power: DC

Sensing Mode (General): Opposed

Sensing Mode (Detailed): Emitter

Housing Style: Rectangular

Primary Housing Material: Thermoplastic

Max Sensing Distance (mm): 60000

Power Supply/Supply Voltage: 10-30 V dc

Connection Integral: QD

Quick Disconnect Type: M12

Min Op. Temp. (°C) -40

Operation: N/A

Max Op. Temp.: (°C) 70

Output response time (ms) N/A

Special Feature: Intrinsically Safe No

Special Feature: Remote Teach No

Special Feature: Water Detection No

Delay at Power-up (ms) N/A

Repeatability (µs) 250

Number of Pins 4

Max Op. Relative Humidity [%] 90% @ 50°C

Lens Material Acrylic

Adjustments N/A

Barrel Diameter (mm) 30

Indicator LEDs

Opposed Mode Emitter/Receiver Emitter

Feature: Audible No

Feature: Quick Disconnect Yes.
