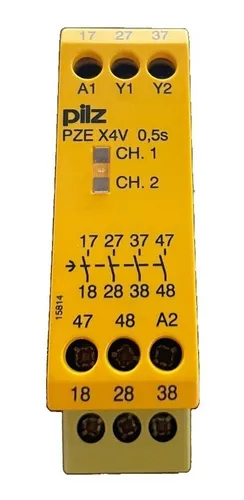

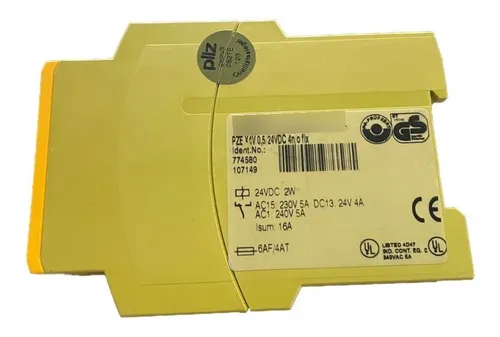

PZE X4V 0,5/24VDC 4n/o fix, PILZ, Module Expansion Module, 24V dc, Single Channel, 4 Safety Contacts
Description
Ampliación de contactos, entradas: cableado de 1 canal, salidas: 4 N/A t-d, UB = 24 V DC, ancho: 22,5 mm, terminales de tornillo integrados, bloque de contactos de desenergización con retardo para ampliación de contactos en conexión con componentes de control relacionados con la seguridad, tiempo de retardo establecido de forma permanente a 0,5 s.
General data
| Approval | CCC CE UKCA cULus Listed TÜV EAC (Eurasian) |
Technical data
Electrical data
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
| Power consumption DC | 2.5 |
Inputs
| Number of inputs | 1 |
Semiconductor outputs
| Number of semicond. outputs | 0 |
Relay outputs
| Utilisation cat. AC/DC1 stand. | EN 60947-4-1 |
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 |
| Safety contacts: AC at UL | 250 VAC G.U. (same polarity) |
| Safety contacts: pilot duty | B300, R300 |
| Relay contact material | AgCuNi |
| Addit. contact details relay | + 0.2 µm Au |
Environmental data
| Climatic suitability to … | EN 60068-2-78 |
| Ambient temperature | -10 – 55 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| EMC to standard … | EN 60947-5-1 EN 61000-6-2 EN 61326-3-1 |
| Vibration to standard … | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | III / II |
| Pollution degree clear.&creep. | 2 |
| Protection type, mounting | |
| Protection type, housing | IP40 |
| Terminal protection type |
Times
| Tolerance Tv | -50 %/+50 % |
Mechanical data
| Mounting position | any |
| Housing material lower section | |
| Housing material front plate | ABS UL 94 V0 |
| Housing material upper part | |
| Connection terminal | Screw terminal |
| Terminal style | fixed |
| Flex. cond. c/s AWG info | 24 – 10 AWG |
| Height dimension | 87 mm |
| Width dimension | 22.5 mm |
| Depth dimension | 121 mm |
| Net weight | 185 g |
| Gross weight | 195 g |
Mas información?
>>>774580
Additional information
| Weight | 0,185 kg |
|---|---|
| Dimensions | 12,1 × 2,25 × 8,7 cm |
